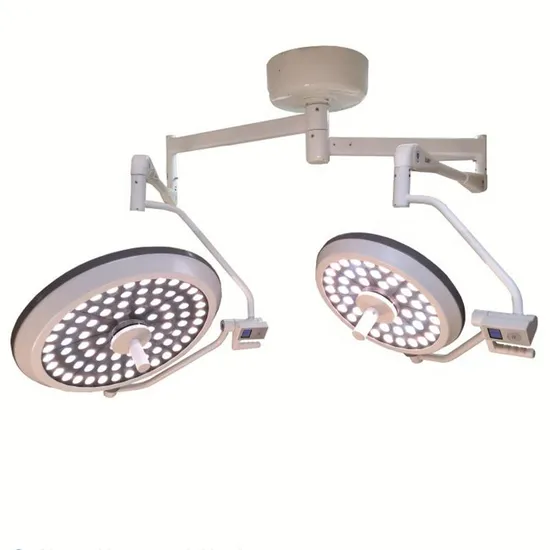

Double Head Surgical Orthopedic LED Lamps Overhead Operating CE LED Lamp Operation

Product Description

Products Pictures
Product Description
1,Extra-long service life.
Adopt new LED cold light source, the life of up to 60,000 hours or more, no need to replace the bulb. Better than the traditional halogen lamp, but also to meet the requirements of energy saving and environmental protection.
2,Perfect cold light effect.
Using new LED cold light source, there is no ultraviolet and infrared light in the spectrum, there is neither heat nor radiation, the temperature rise of the doctor's head and wound area is ≤1ºC, almost no temperature rise.
3. Ideal shape design to meet purification requirements.
The fully enclosed streamlined lamp head design conforms to the design principle of aerodynamics, completely eliminates the flow dead angle in the purified air, meets the high standard laminar flow requirements of modern operating rooms, and facilitates the sterile requirements of operating rooms.
4,Humanized interface design.
Lighting brightness can be changed according to the hospital's demand for different surgical lighting. Optional new LED touch LCD control panel can be used to realize the switch of lighting and the adjustment of illumination, color temperature and brightness mode.
5, super deep lighting, perfect shadowless effect:
The overall design of the LED lamp head makes the beam gather into a high brightness uniform light column, thus ensuring a soft and uniform deep gathering effect to ensure that the surgery for high brightness, high depth of lighting needs.
6, color temperature adjustable function.
The color temperature of LK/LED-700/500 type surgical shadowless lamp is adjustable from 3500K to 5000K in six steps, which makes the diagnosis more accurate and does not cause eye fatigue to the medical staff due to long working hours.
7,Good suspension system.
Lightweight and high-quality balance arm suspension system (optional imported arm), six groups of universal joint linkage, 360 degree all-round design, can meet the needs of various heights, angles and positions in surgery, easy to move and accurate positioning.
8,Clearly structured focusing system.
With manual focus technology, simple and lightweight operation, overcome the technical difficulties in focusing the LED surgical shadowless lamp, to achieve the stepless focus function; disassembled handle, can do (≤ 160 ºC) autoclave treatment.
9,Bright and even lighting.
The light beam from the LED light source is focused through a specially designed high-performance lens in the surgical area to meet the light field required for surgical illumination; the maximum illumination level can reach 160.000 LUX. The brightness of the LEDs is steplessly regulated by digital means, and the illumination level of each lamp head can be adjusted separately.
10. Very low failure rate.
Each LED module contains 6-10 LED beads, each module contains an independent electronic control system, the lamp head has a very low failure rate, the failure of a single LED will not affect the function of the lamp head.

Model	LK/LED-700/500
Number of LED bulbs	80pcs/48pcs
Illuminance (Lux)	80,000-160000/60,000-140000
Color temperature (K)	3500-5000K adjustable/3500-5000K adjustable
Light spot diameter (mm)	150-350
Dimming system	Infinitely Dimmable System
Color rendering index	≥96
Lighting depth (mm)	≥1200
Operative head temperature rise (ºC)	≤1
Temperature rise in the operative field area (ºC)	≤2
Color Reproducibility Index (CRI)	≥96
Color reproduction index	≥97
Supply Voltage	220V/50Hz
Input power (W)	400
Minimum/optimal installation height	2.4m/2.8m
