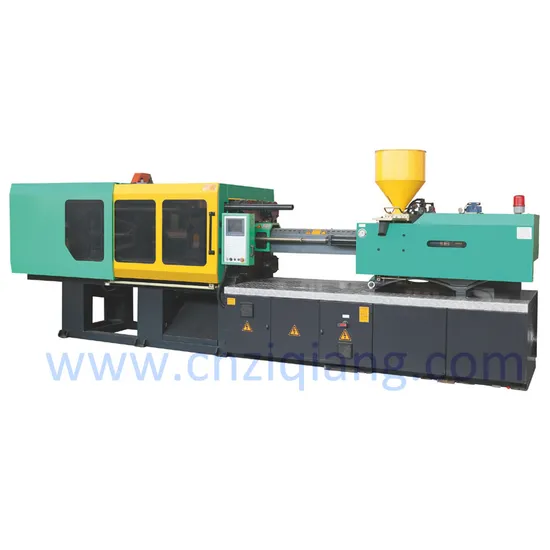

High Quality Servo Plastic Injection Molding Machine Price

Product Description

high quality servo plastic injection molding machine price 128Ton
Model: ZQ88-M6, ZQ128-M6, ZQ168-M6, ZQ218-M6,
ZQ268-M6, ZQ320-M6, ZQ400-M6, ZQ500-M6, ZQ680-M6
Clamping Force: 880KN---6800KN
Shot Weight: 1---4Kg
Shot Volume: 129cm3---3808cm3
The technical advantages of injection machine.
Water Saving: No overflowing heating, low oil temperature saves cooling water,
And increases life of sealing elements.
Power Saving: Save Power30%-60%.
High Speed: Increase 20% performance capacity by using variable displacement pump.
Oil Saving: Using high performance filter device to increase life hydraulic oil.
high quality servo plastic injection molding machine price 128Ton,equipment information.

	ZQ88-M6			ZQ128-M6			ZQ168-M6
	275/88			416/128			619/168
International size rating
INJECTION	A	B	C	A	B	C	A	B	C
Shot volumecm 3	129	163	201	215	263	316	291	349	463
Shot weightg/()	121	153	189	196	239	287	273	328	435
(PS) oz()	4.2	5.4	6.6	6.9	8.4	10.1	9.6	11.5	15.2
Screw diametermm	32	36	40	38	42	46	42	46	53
Injection pressureMpa	214	169	137	193	158	132	190	169	120
Screw L: Dratio-----	23:1	20:1	18:1	22:1	20:1	18:1	23:1	20:1	18:1
Screw strokemm	160			190			200
Screw speed (stepless)r/min	0-215			0-220			0-234
CLAMPING SYSTEM	ZQ88-M6			ZQ128-M6			ZQ168-M6
Clamping forceKN	880			1280			1680
Opening strokemm	320			380			430
Platen sizemm×mm	550×550			620×620			700×700
Space between tie bars mm×mm	360×360			410×410			460×460
Max.daylightmm	680			810			930
Mold thickness (Min-Max)mm	150-360			150-430			180-500
Hydraulic ejection strokemm	100			125			140
Hydraulic ejection forceKN	31			42			50
/POWER UNIT	ZQ88-M6			ZQ128-M6			ZQ168-M6
Hydraulic system pressureMpa	16			17.5			17.5
Pump motorKW	9.5			11			15
Heating capticyKW	6.5			8.9			9.8
Number of temp control zones--	3+(nozzle)			3+(nozzle)			3+(nozzle)

Note: The specifications are subject to change without notice for the further improvement.

---
