Basic Info.
Model NO.
MR1111, MR1115, MR1118
Type
Tool Grinding Machine
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Name
Automatic Band Saw Blade Sharpener
Key Words
Band Saw Blade Sharpener
Application
Grinding Band Saw Blade
Transport Package
Iron Frame Packaging/Customized
Production Capacity
500set/Year
Product Description
Product Description

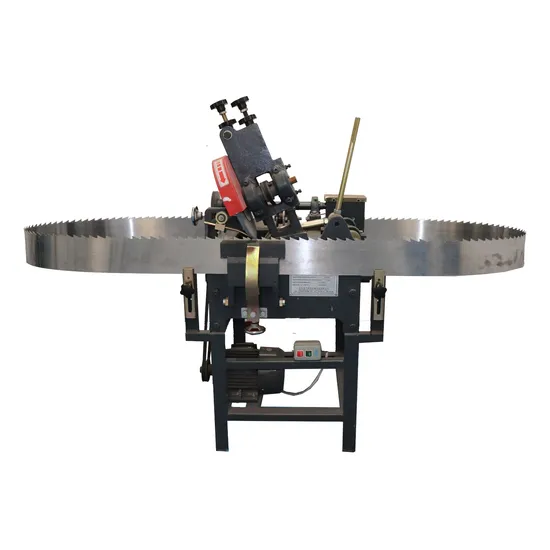

Automatic Band Saw Blade Sharpener
Mainly used to polish and process the tooth flank,tooth back,and the tooth throat of the jugged saw blade.
It's size is small and easy to adjust and simple structure.
Model | MR1111 |
Grind Width MM | 15-80 |
Sand Wheel Diameter MM | 150 |
Band Saw Blade Pitch MM | 8-20 |
Working Frequency Tooth/Min | 50 |
Overall Size MM | 830*560*530 |
Packing Size MM | 900*600*550 |
Net/Gross Weight(kg) | 52/70 |
Model | MR1115 |
Grind Blade Width Range | 30-125mm |
Sand Wheel Diameter | 250mm |
Grind Teeth Pitch Range | 10-30mm |
Grinding Speed | 50tooth/min |
Overall Size | 950*650*600mm |
Weight | 100kg |
Model | MR1118 |
Grind Blade Width Range | 60-150mm |
Sand Wheel Diameter | 250mm |
Grind Teeth Pitch Range | 10-40mm |
Grinding Speed | 50tooth/min |
Overall Size | 900*750*700mm |
Weight | 200kg |
Detailed Photos
Related Products
Portable Horizontal Band Saw
Portable horizontal band saw is our patented product,it is easy to install and operate,smooth finishing by carbide band saw blade.
The cutting kerf is small,reduce the waste to high output.
Suitable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest.
Ultra Portable Horizontal Band Saw
Ultra portable horizontal band sawmill,smooth finishing,easy to move around,suitable to cut wood for the farm owners and DIY woodworking.
Cutomer Feedback
Company Profile
Shandong Zouping Shuanghuan Machinery Co.,Ltd.is one of the world's leading manufacturers of high quality sawmills.
Established in 1988,the company has always been committed to the production and R&D of sawmills and sincerely serves 11,000 enterprises.Our products have been exported to 61 countries in the world.
The company's registered brand "SAWMILL-WORLD"including horizontal band sawmill,vertical band sawmill,multiple blade rip sawmill,circular sawmill and chain sawmill and so on.
With the standardization of quality management and service,it has won the favor of many customers.
>>
