China Automatic Extrusion Plastic Big Water Tank Container Blow Molding/Moulding Machinery

US$70,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PXB100A
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Bottom Blowing
Available
Material
PP, PE, ABS...
Total Weight
16.0t
Output(Dry Cycle)
400 PC/Hr
Die Head Option
Accumulator Head
Transparent Line
Available
Production Usage
Toys, Auto Parts, Drum, etc
Multi-Layer
Available
Multi-Color
Available
Screw Diameter
100mm
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 90L
Trademark
Puxin
Origin
Suzhou
HS Code
847730100

Product Description

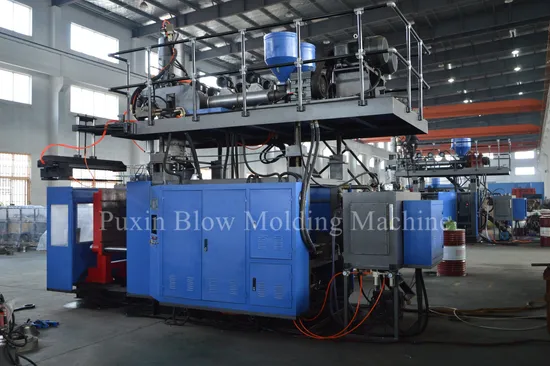

PXB100A
60L-90L Blow Molding Machine
- Double Drawbar clamping mechanism
- Perfect Usage for Chemical Drum, Road barrier, ABS car bumper
- High clamping force with short production cycle
- Patented Technology Die head system
- Optional Transparent line
Configuration List
PLC MITSUBISHI Japan
Touch Screen HITECH Taiwan
Inverter MITSUBISHI Japan
Power Supply MEAN WELL Taiwan
Relay OMRON Japan
Hydraulic Valves YUKEN Japan
Hydraulic Pump YUKEN Japan
Contactors LS(LG) Korea
Solid relay FOTEK Japan
Breaker LS(LG) Korea
Temperature Control Module MITSUBISHI Japan
Oil Sealing DZ Taiwan
Oil Tube LIEBAO Taiwan
Transducer GEFRAN Italy
Proximity Switch SONON China
Motor SIEMENS China
Air Valve FESTO Germany
Parison Controller Moog Japan
Servo Valve Moog Japan

Parameters:
Material PE,PP,ABS...
Max container capacity L 90
Output(dry cycle) pc/hr 400
Machine dimension(L×W×H) M 6.2×2.8×4.5
Machine weight T 16
Clamping Unit
Clamping force kn 450
Mold platen size(W×H) mm 1080×1000
Platen opening stroke mm 500-1200
Platen moving stroke mm 700
Max mold size(W×H) mm 800×1100
Mold thickness mm 510-650
Power
Servo oil pump motor power KW 18.5
Servo pump displacement L/MIN 120
Blow pressure MPA 0.8
Air consumption M3/MIN 1.2
Cooling water pressure mpa 0.3
Water consumption L/min 100
Average energy consumption KW 43-50
Extruder unit
Screw diameter mm 100
Screw L/D ratio L/D 24
HDPE Melting capacit for HDPE kg/hr 160-200
Number of heating zone zone 5
Screw heating power kw 25.1
Screw fan power KW 0.6
Extruder motor power kw 45(55)
Die head
Number of heating zone for single die head zone 5
Heating power for single die head kw 26
Max die-pin diameter mm 450
Accumulator capacity L 12
(HDPE) Accumulator weight(HDPE) KG 9

Delivery Time:
- No later than 45 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
