Basic Info.
Function
Green Signal, Red Signal, Yellow Signal, Flash Alarm Signals, Direction Signals, Traffic Signal Wand, Lane Signals, Crosswalk Signal, Command Signal
Control Method
Timing Control
Certification
CE, RoHS, FCC, CCC, ISO9001
Housing Material
Metal Shell
Mask Specification
Φ200mm
Battery
LiFePO4, 12.8V/60ah;
Working Environment
-20~+70
Transport Package
Carton/Wood Pallet
Specification
500*500*150 mm
Trademark
Bright New Energy
Production Capacity
500000
Packaging & Delivery
Package Size
52.00cm * 43.00cm * 28.00cm
Package Gross Weight
50.000kg
Product Description

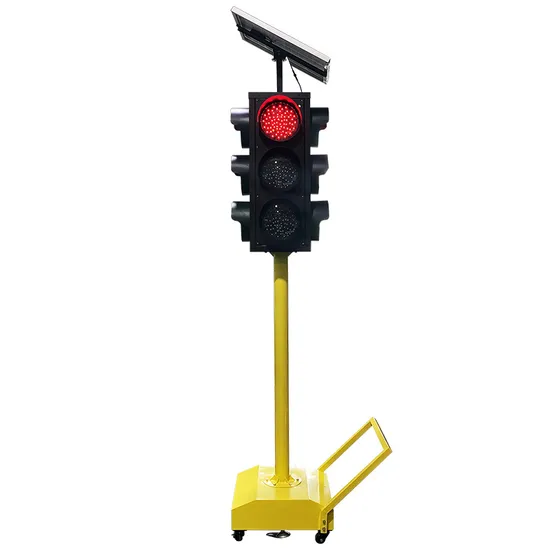

Topic:Solar Road Safety LED Integrated Light Three Colors Red Green Amber Automatic System Solution Warning Signal Traffic Light
Product specifications:
Product Name: | solar traffic light (Diameter:200mm) | LED Lights Colors: | Red, Yellow and Green |
LED Power: | <15W | Controller: | A traffic light controller; working 24 hours |
Solar Panel: | 80W Mono | Brightness&Chroma: | GB14887-2003 |
Working Voltage: | DC12V±10% | Small Signal Machine: | Working mode can be adjusted |
Working Environment: | -20ºC~+70ºC | Diameter: | 68 mm |
IP Rate: | IP65 | Height: | 2.2 m |
Material: | imported PC material, anti-UV, anti-yellowing | Cabinet Size: | 500*500*150 mm |
Humidity and heat performance: Under the condition of relative humidity ≤95%, the signal light can still work normally. |
Our service:
1. Your inquiry pelated to our products or service would be replied in 12 hours.
2. Well-trained and experienced staffs would answer all your inquiries in fluent English.
3. OEM&ODM. Unique design products and many private mold products are for your selection.
4. 2-year warranty, ideas of design and any of your propriate requirments.
5. Accepting sample order for test.
6. Strictly protect your private information and your ideas of design.
FAQ:
1. What is the typical maintenance schedule for a solar light system?
There is no regular maintenance required for a solar lighting system. However, it is helpful
to keep the solar panels clean, especially in a dusty climate.
2. What happens if there are cloudy days?
Electrical energy is stored in the battery each day, and some of that energy is used to operate
the light at night. Generally, the system we design would allow the battery operate the light
for seven nights without charging. This means even after a series of cloudy days, there still
will be plenty of energy stored in the battery to power the light at night. Also, the solar panel
will continue to charge the battery (although at a reduced rate) even when it is cloudy.
3. Which types of warranties you will have?
(1) Solar Panel: Mininum 25 years of power generation capacity, with 2-years warranty.
(2) LED Light: Mininum 30.000 hours life span, with 2-year all inclusive warranty - covers
everything on the LED street lights, including lamp holder parts, power supply, radiatior, scaling
gasket, LED modules, etc.
(3) Battery: 5 to 7 years life span, with a 2-year warranty
(4) Controller inverter and all the electronic parts: Minimum 8 years by ordinary usage, with a 2- year warranty
(5) Pole solar panel bracket and all the metal parts: up to 10 years life span.
>>
