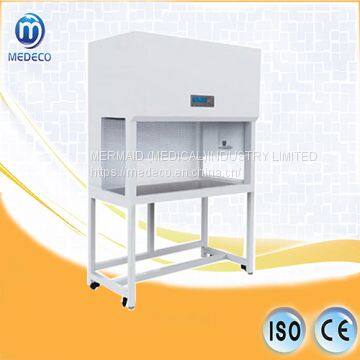

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Model
| MEBS-V1300
| MEBS-V1800
|
External Size(W*D*H)
| 1300*750*2040mm
| 1800*750*2040mm
|
Internal Size(W*D*H)
| 1200*645*610mm
| 1700*645*610mm
|
Work Surface Height
| 750mm
|
Display
| LCD Display
|
Airflow Velocity
| Average of 0.3~0.5m/s
|
Material
| Main Body: Cold-rolled steel with anti-bacteria powder coating
|
Work Table:304 stainless steel
|
Side and Front Windows:5mm toughened glass anti-UV
|
Pre-filter
| Polyester fiber, washable
|
HEPA Filter
| 99.999% efficiency at 0.3um
|
Noise
| | Front Window
| Motorized
|
Max Opening
| 430mm
|
LED Lamp
| 12W*1
| 16W*1
|
UV Lamp
| 30W*1
| 40W*1
|
Emission of 253.7 nanometers
|
Consumption
| 400W
| 450W
|
Waterproof socket
| Two, total load≤500W
|
Caster
| Universal caster with leveling feet
|
Power Supply
| AC220V±10%, 50/60Hz; 110V±10%, 60Hz
|
Standard Accessory
| LED lamp, UV lamp*2,Base stand, Gas Tap, Waterproof socket*2
|
OptionalAccessory
| Electric height adjustable base stand
|
Gross Weight
| 228kg
| 306kg
|
Package Size(W*D*H)
| 1460*1070*1650mm
| 1960*970*1600mm
|
