1350*560mm Double Rotary Table Shot Blasting Machine for Cleaning Forgings Castings

Product Description

1350*560mm Double Rotary Table Shot Blasting Machine for Cleaning Forgings Castings
Production Description:

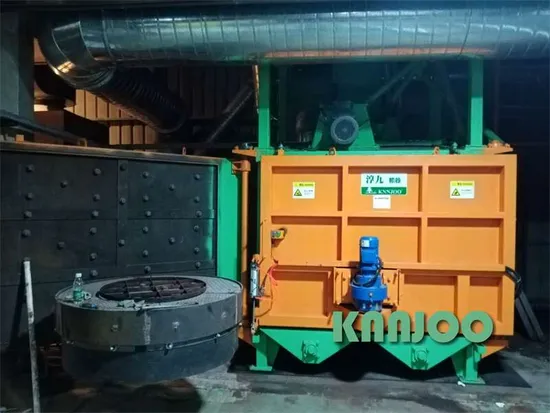

Rotary Table Shot Blasting Machine For Flat Metal Parts is suitable for surface cleaning and strengthening of steel structural parts and casting ,and is especially suitable for surface rust removal and cleaning of surface scale of thick billet steel.
Turntable Shot Blasting Machine is widely used in foundry ,forging,mechanical and steel industries.
Turntable Shot Blasting Machine is suitable for surface rust removal and strengthen of engine connecting bar, gear, shell cover wall, clutch friction part.
Summary of Turntable Shot Blasting Machine :
Turntable Shot Blasting Machine: compact structure, small space required, low noise, no leakage, easy installation and maintenance.
Turntable Shot Blasting Machine includes dust collector, separator, cartridge filtration system and soon on.
Turntable Shot Blasting Machine has no special foundations required, no extra ducting needed
Turntable Shot Blasting Machine is equipped with full safety interlocks.
Turntable Shot Blasting Machine is a automatic machine in operation.
Turntable Shot Blasting Machine , Table blast,
Turntable Shot Blasting Machine structure is simple, small footprint, easy to use and reliable.
Technique parameter:

Type item			ZJ012	ZJ012F	ZJ012G
Size of cleaning chamber		mm	Ø1350*560	Ø1350*860	Ø2654*560
size of cleaning piece		mm	600*250*250	600*250*250	1000*500*250
Turn table	loading capacity	kg	400	400	1000
	diameter	mm	Ø1200	Ø1200	Ø2500
Blasting apparatus	abrasive flow rate	kg/min	200	2*150	2*250
	power	kw	11	7.5*2	15*2
Lifiting amount of elevating conveyor		t/h	15	15	30
Separating amount of separator		t/h	15	15	30
Abrasive initial filling		kg	400	350	1500

Servies
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in time.
3.Customized design is available.
4.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5.Special discount and protection of sales are provided to our distributor.
6.Professional factory:We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !
Trade Term:
Payment term:30% as deposit, 70% balance against the copy of B/L
Delivery of the goods is executed within 45 days after receipt of advance payment.
Manufacturer must provide the certificate of origin to buyer.
Quality and After-sale Assurance:
1.Supplier promise the name, model, specification and quantity comply with technical protocol,
Assuring the machine is new equipment with qualified material manufactured through perfect technology.
There are no defects in design, material and technologies, which is suitable for propose of demander,
And meets the standard of national industry.The quality is stable and reliable.
2.Equipment warranty and After-sale Assurance Engineers available to service machinery overseas
( except force majeure, inappropriate operation and the quick-wear parts wears).
3.The equipment will pass the installment and test before delivery, after the quality is qualified,
We will disassembly the equipment, coating and deliver.
In order to give you the suitable machine , pls provide below message for us :
1.What is your workpiece and the material and the shape ?
2.The Max.Length/Width/Height of the workpiece and the MAX./MIN.Weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4.The power supply you need( Our China :380V, 3PH, 50HZ)
5.Better to send us the workpiece photo or drawing.
FAQ
What is a shot blast machine?
A shot blaster is a machine that controls the flow or stream of fine metal beads as they are forcibly projected against a surface by mechanical acceleration.
What material is used for shot blasting?
Types of metal abrasives used in shot blasting include steel grit, copper shots, and aluminum pellets. Other methods of shot blasting use silica sand, glass beads, synthetic materials like sodium bicarbonate (baking soda), and even agricultural materials like crushed kernels.
Will shot blasting remove rust?
Shot blasting is the process of abrading the surface of a metal workpiece to remove rust, dirt and other solidified contaminants by hurling a high speed stream of tiny pieces of stainless steel that resemble buckshot. It is capable of deburring, shaping and texturing a surface.
What is the difference between sandblasting and shot blasting?
Essentially, the sandblasting process uses compressed air to shoot some form of abrasive media like sand against the product being treated. Shotblasting employs centrifugal force from a mechanical device to propel treatment media upon the product.

---
