Single Screw Dryer-Free Vented Type RPET/PLA/PP/PS Sheet Extrusion Machinery Plastic Machine

Product Description

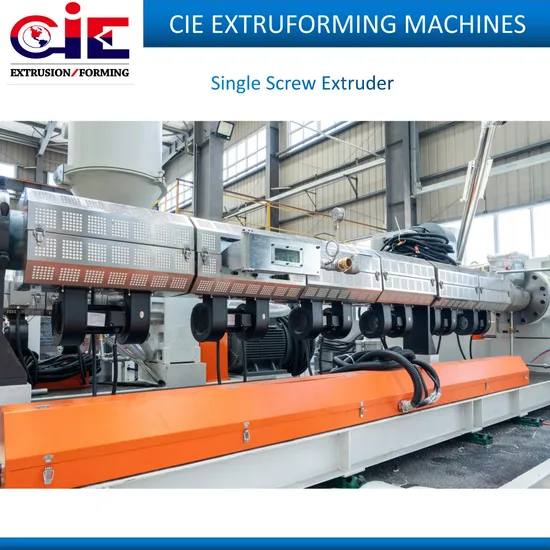

PET Single screw sheet extruder machine Vented type
Layout:

Our Advantages:
- CIE APET/GPET/RPET/CPET/PLA sheet single-screw/ vented-single-screw extruder fully considers PET production process and combined with advanced PET extruder technology of Germany and Italy.
- The screw and the barrel adopts European advanced vacuum system, widely used in and best choice for the productions of GAG decorations sheet foldable sheet, thermoforming disposable cups sheet, etc. The finished sheet are used for plastic products like drinking cups, disposable cups, ice-cream cups, yogurt cups,trays,dishes,lids,plastic containers,plastic boxes and other plastic products.
- This line also meet the production of other materials such as PP PS and PLA

SPECIFICATIONS FOR PET/PETG/CPET Precision Sheet Making Machine
Model	CIE130 high exfficient	CIE-85/44 Non crystalline
Extruder Model	CIE130/33 single screw	CIE85/44 parallel double screw
Main motor power	185KW	200KW
Products thickness	0.15-1.5mm	0.15-1.5mm
Capacity	Max. 850kg/h	700-950 kg/h

PART1 THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic vacuum feeding machine			1 set
2	High efficiency single screw extruder (90/33,120/33, 130/33) or Twin screw extruder(75/33, 85/44)			1 set
3	Hydraulic exchanging unit			1 set
4	Melting gear pump			1 set
5	T-type /hanger type die head (JC-Times brand)			1 set
6	Three Roller Calendars (alloy steel material )			1 set
7	Temp. controller			1 set
8	Cooling frame and edge cutting unit			1 set
9	Silicone coating &dryer			1 set
10	Haul off unit			1 set
11	Twin position sheet winder			1 set
12	Stacker			1 set
13	Electrical cabinet (ABB,Omron, RKC, Siemens etc)
14	Spare parts			1 set

PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1	Air compressor		1 set
2	Industrial water chiller		1 set

PART 3 SHEET SPECIFICATIONS
1	Sheet width	600-1200mm
2	Sheet thickness	0.2-2mm
3	Type	PET single layer/mono layer sheets
4	Raw material	1. Can be virgin plastic pet material 2. Can be recyclable material, like PET Bottle Flakes

PART 4 SHEET APPLICATIONS
1	Packing, printing, stationery, art works etc.
2	Main Products: Gift/ad/file bag/lamp cover/food packaging

Special design of PET single-screw extruder; to match crystallize & dehumidify-dryer Special design of PET vented single-screw extruder; to match crystallize Vented single-screw extruder match the European technology vaccum vent & vacuum system Special design of PET single-screw/ vented single-screw extruder is best choice of the productions of decoration sheet(GAG), disposable cups,etc. Universal Extruder design for 100% PET flakes or mixture of virgin + flakes, also available for running PR HIPS, PLA.
Special design of PET sheet production processes, fastest cooling, highest accuracy Standard of rolls stand is L shape, sheet surface can be touched as much as possible for higher transparency Rolls stand can also be designed as inclined, horizontal etc. based on requirements Rolls driven & controlled individually; also synchronized
SIEMENS PLC (HUMI) controls whole line, all production processes data display & save Special adjust system for thickness change, high accuracy^ low waste of material & time SIEMENS Driver/ SIEMENS Servo controller are machine standard, with global Warranty Other electric items by International famous brands as well, SIEMENS, ABB, YASKAWA. Etc.
The PET PP PS PLA SHEET applications: The PET sheet is widely used for plastic products like drinking cups, disposable cups, ice-cream cups, yogurt cups,trays,dishes,lids,plastic containers,plastic boxes and other plastic products.
About CIE EXTRUFORMING MACHINES(SHANGHAI):
CIE EXTRUFORMING MACHINES(SHANGHAI)CO., LTD. is a high-tech enterprise certified by the state. The factory is located in Fengjing Economic Development Zone, Jinshan District, Shanghai. For many years, it has been committed to becoming a leading supplier of plastic extrusion equipment and plastic thermoforming equipment in the industry. Since its establishment, the company has always followed the business philosophy of "integrity; pragmatism, development and innovation", and has long focused on the exploration and innovation in the design, R & D, manufacturing, sales and after-sales service of plastic extrusion equipment and plastic thermoforming equipment, aiming at providing customers with first-class overall solutions for the industry. CIE has introduced advanced technologies from Germany and Italy, and combined with its own multi-functional advantages Years of R & D and manufacturing experience and application cases, continuously manufacturing high-end, efficient environmental protection and energy-saving intelligent extrusion equipment for the industry. At present, it has been exported to many countries in the world and won high recognition and praise from customers in the industry.

Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together. IF YOU WOULD LIKE TO KNOW MORE ABOUT US, PLEASE
CONTACT US

---
