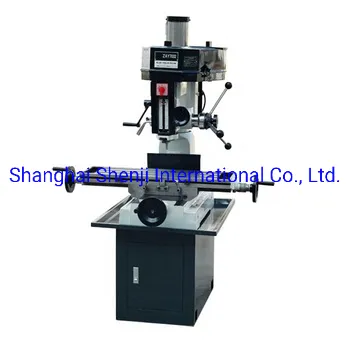

Drilling & Milling Machine Zay7020/Zay7032/Zay7040/Za7045

Product Description

Features
Milling, drilling, tapping, boring and reaming.
Headstock swivel 360º horizontally.
Belt-drive and round column.
Micro feed precision.
12 steps speed.
Adjusable gibs on table precision.
Posive spindle lock.
Strong rigidity, powerful cutting and precisely positioning.

Model	ZAY7020	ZAY7032	ZAY7040	ZAY7045
Drilling capacity	20mm	32mm	40mm	45mm
Face milling capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Distance from spindle nose to table	435mm	450mm	450mm	450mm
Min.distance from spindle axis to column	181.5mm	203.5mm	203.5mm	203.5mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	MT3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	12	12	12	12
Range of spindle speed 50Hz	100-2200 r.p.m	100-2200 rpm	80-2080 r.p.m	80-2080 r.p.m
Range of spindle speed 60Hz	120-2640 r.p.m	120-2640rpm	100-2500 r.p.m	100-2500 r.p.m
Swivel angleof headstock (horizontally)	360°	360°	360°	360°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor Power	0.55KW	1.1kw	1.1KW	1.5KW
Voltage/frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Net weight/gross weight	130kg/190kg	283kg/333kg	283kg/333kg	285kg/335kg
Packing size	620×750×1000mm	1020×820×1160mm	1020×820×1160mm	1020×820×1160mm
Loading amount	48pcs/20'container	28pcs/20'container	28pcs/20'container	28pcs/20'container

Standard Accessories:
Tie rod
Wedge
Allen wrenches
Tool box & tools
Optional Accessories:
Drill chuck Milling cutter holder MIll chuck Power feed attachment Auto-tapping electrical Paraller vise Working lamp Coolant system Machine stand and chip tray Clanping kits(58pcs) Rotary table

---
