Oil Heating Platen Hot Press Machine Parts Melamine Hot Press Machine

Product Description

Oil Heating Platen Hot Press Machine Parts Melamine Hot Press Machine
Product Parameters

No.of layers	8,12,15,18layers or as your requirements	8,12,15,18layers or as your requirements	8,12,15,18layers or as your requirements
Nominal perssure	400Ton	500Ton	600Ton or according to NO.of layers
No.of cylinders	2 pcs	2 pcs	2 pcs
Diameter of cylinders	320mm(alloyed material)	360mm(alloyed material)	400mm(alloyed material)or according to NO. of lays and pressure
Stroke of cylinders	1050mm	1050mm	1050mm
Origin of cylinder	Wuxi.China	Wuxi.China	Wuxi.China
Hydraulic system	Full-automatic controlled	Full-automatic controlled	Full-automatic controlled
Pressure of hydraulic system	25Mpa	25Mpa	25Mpa
The flow of main oil pump	250ml/rev	260ml/rev	270ml/rev or according to pressure
Pressor oil pump	10ml/rev plunger oil pump	10ml/rev plunger oil pump	10ml/rev plunger oil pump
Main generator	11KW	11KW	11KW
Pressor generator	5.5KW	5.5KW	5.5KW
Time of no-load closing	About 27seconds	About 27seconds	About 27seconds
General dimensions	3560*1370*4000m	3560*1370*4000m	3560*1370*4000m
Height of top crossbeam	800mm	800mm	800mm
Height of nether crossbeam	800m	800mm	800mm
Thickness of steal board	35mm	40mm	45mm or according to NO.of layers and pressure
Dimension of active	2700*1370*400mm	2700*1370*400mm	2700*1370*400mm
Thickness of steal board in active crossbeam	22mm	22mm	22mm

Product Description
Hot platen:
1. it is drilled from excellent carbon solid steel and it is high precision, high strength and durable.
2. it is manufactured on special workable., so as to keep the hot platen easy to operate.
Heating system
1. It can be heated by steam boiler, oil heater or electric oil heater.
2. We recommend oil type boiler as the temp can be more stable.
Cylinder:
1. it is made in wuxi from excellent carbon solid steel and it is high strength and durable.
2. It uses high quality oil envelop so as to avoid of oil leaking.
Control system
1. Plc control
2. It can lift the hot platen, close the seperation, add the pressure, keep the presssure, keep time, descend the hot platen and so on.

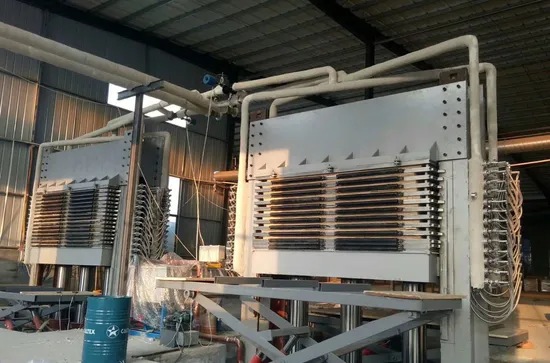

Detailed Photos

Company Profile
WHO WE ARE
GTCO Machinery company is located in Linyi City--- a commercial and logistics city.
After more than 20 years' continuous innovation and development , Machinery has become an outstanding enterprise along with strong power , advanced technology and excellent quality Products are sold nationwide , exported to Asia , Europe , Africa and Oceania... etc
WHAT WE DO
We have strong technical strength, talented people, and constantly introduces various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine ,veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine and glue spreader etc.
2020 years ,we join in the new design and construction machine - stone crusher ,the main product have PE Jaw Crusher, PF Impact crusher , CS Cone crusher Feeder and screen Mobile crusher. etc.
We always right here waiting for service to you !
Welcome to visit us.
WHY CHOOSE US
1.Customized equipment, especially of unusual size, press, etc.
2.High quality and technical support
3.So rich international-trade experience for machinery.
4. 7*24hour on line service.



Related Products
Our Service
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory Service during the sales1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator After sales service 1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging

---
