US$900.00-4,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Cattle,Horse,etc
Computerized
Computerized
Warranty
1 Year(Except Spare Parts)
Dimension(mm)
1800*550*980mm
Raw Material
Chopping Corn Stalk, Rice Straw, etc
Applicable Animals
Cattle,Horse,etc
Advantage
Easy Operation,Long Life,etc
Place of Production
Zhengzhou
Transport Package
Packing in Wooden Box
Origin
Zhengzhou, Henan, China
Packaging & Delivery
Package Size
180.00cm * 55.00cm * 98.00cm
Package Gross Weight
105.000kg
Product Description

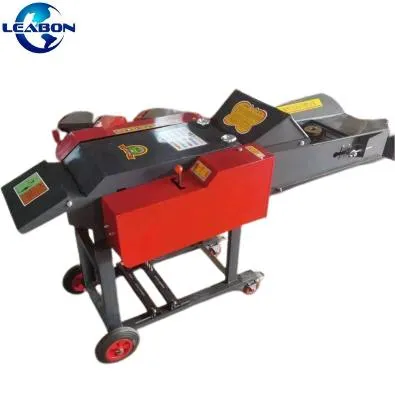

Widely Use Hay Animal Feed Chaff Cutter Machine for Sale
Product Description
This series of hay cutter has the characteristics of reasonable structure, convenient use, simple operation, beautiful shape and strong adaptability. Suitable for chopping corn stalk, rice straw, cereal grass, wheat straw, green weeds and other materials.
Product Parameters
| Model | LB-0.4 | LB-5 |
| Capacity(kg/h) | 400-800kg/h | 5t/h |
| Motor(kw) | 2.2 | 4 |
| Packaged dimension(mm) | 800*580*1150 | 1800*550*980 |
Other Types of Chaff Cutter
Hay Cutter
The machine is powered by a motor. The power is transmitted to the main shaft, and the gear at the other end of the main shaft transmits the speed-regulated power to the grazed grass through a gear box, a universal joint, etc. When the material to be processed enters between the upper and lower pressure grasshoppers, it is pressed. Holding and feeding at a certain speed into the cutting mechanism, after the high-speed rotary cutter is chopped and thrown out of the machine through the grass.
Technical Parameter
| Model | Power(KW) | Weight | Dimension(mm) | Capacity(T/H) |
| LB9Z-3.0 | 5.5 | 180 | 1250*1150*1670 | 2.5-3.5 |
| LB9Z-5.0 | 5.5 | 350 | 2690*1210*2390 | 4.5-5.5 |
| LB9Z-8.0 | 7.5 | 480 | 3110*1500*2860 | 6-8 |
| LB9Z-10.0 | 15 | 1000 | 3510*1800*4210 | 8-10 |
| LB9Z-12.0 | 18.5 | 1285 | 3810*1900*4230 | 12-18 |
| LB9Z-15.0 | 22 | 1500 | 4100*1950*4350 | 15-20 |
| LB9Z-20.0 | 30 | 2000 | 4350*2050*4550 | 20-30 |
| LB9Z-30.0 | 45 | 3000 | 4850*2350*4550 | 25-38 |
Raw Material&Application
Raw Material
Application
Packaging & Shipping
Company Profile
FAQ
Q1:What is your raw material and the material diameter?
------This raw material could be maize straw,sugarcane,rice straw,bean stalk,peanut seedling,etc. |
Q2:What's the certification of your machine?
------CE Certification. |
Q3:what's your voltage requirement?
------we can produce the machine voltage as your requirement. |
Q4: What's your payment terms?
------Payment terms: T/T; L/C; Western Union; Money Gram. |
