LORNET-24 Non Linear Junction Detectors

Product Details

Product Description

Product Description

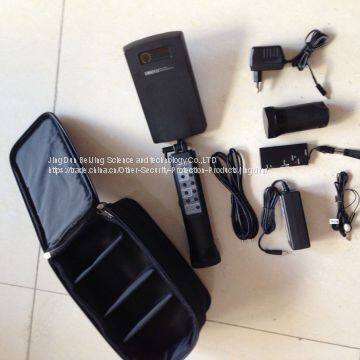

Ultracompact and lightweight non-linear detector
with 2400 MHz probe frequency
ANALYSIS OF THE NATURE OF SEMICONDUCTOR
For efficient identification of artificial and natural semiconductors a listening through a built in speakerphone or headphones can be used after AM decoding of the signal in continuous mode
ANTIJAMMING
Lornet is equipped with an automatic system of protection against centered jamming by criterion of a minimum noise in the receiver path of the 2nd harmonic
CONTROL
User friendly interface and unified push-button control. It does not require pre-setting before the start
INDICATION
Vivid and explicit indication of power levels of the signal and the received harmonic-waves
Technical characteristics

Probing signal frequency range	2400MHz +/-
The maximum power of the probing signal (peak // average):
Pulse mode	10W//230mW
Pulse mode with small duty cycle (CW)	200mW
Receiver sensitivity, not worse than	-110dBm
The adjustment range of the probing signal power	20dB
The dynamic range of the receiving path	24dB
Battery life at maximum power in a pulse (continuous) mode	3,0h (1,5h)
Device dimensions	39х10х6 (22х11х7)cm
The full weight of the item in active state	0.7kg
The bag dimensions	44х30х35cm
The full weight of the item within a bag	1.7kg
The operating temperature range	from +5 to +40℃

---
