Spiral Square Paper Tube Core Making Machine

Product Description

Video for your reference:
https://saninternational.en.made-in-china.com
1.Brief Introduction This machine is used for making square/rectangular paper tube. It consists of integral paper reel stand,bottom ply wax lubricating stand, glue stand, spiral winding unit, inline cutting unit with dust collecting device and tube discharging unit. One mandrel will be delivered with machine.
2.Main Features
This machine owns below features:l Japan Mitsubishi PLC and Inverterl Japan Mitsubishi 6 inches touching panell Japan Mitsubishi Servo motorl Japan THK brand high-speed screwl Stainless steel glue tank and stainless steel glue scraperl Automatic angle adjustment of winding unit(main machine). Very easy operation.
3.Technical Parameter:

Model	SANSPT-PLC250
Tube side length	18mm-250mm
Tube wall thickness	3-7mm

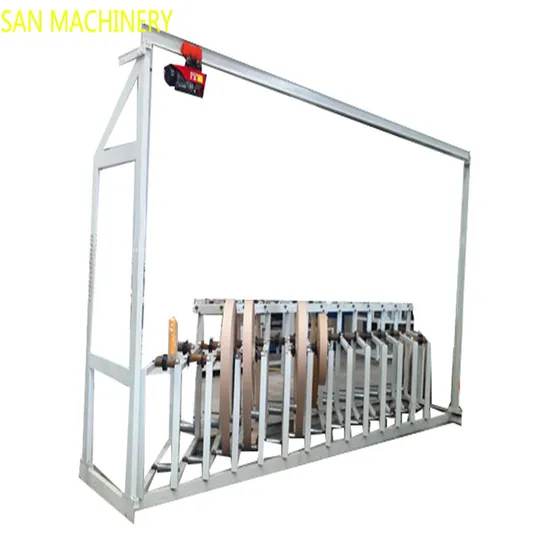

Paper reel stand	Integral paper reel stand with electric crane.
Pressure roller	12pcs (3pcs for each side)
Speed	3-10m/min(depends on tube size,material quality,operator skills)
In-line cutting length	Adjustable, no more than 2500mm
In-line cutting tolerance	±1.5mm
Cutting method	Automatically cut with single circular saw
Glue method	Double surface gluing
Power	15KW/380V/50HZ/3 phases
Weight	~4000kg
Dimension	4200mmX1500mmX1800m

4.Exhibition
5.Testing & Packing
We testing every machine before shipment.
The machine will be packed and shipped by container.
The machine will be packed by film in standard.
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing.
6.FAQ
About Trade Term
Q-----What's the trade term for making business with us?
A----- FOB,CFR,CIF; It's mainly depend on client's requirement;
About Delivery Time
Q------What's the Delivery time after placing order ?
A------Usually it takes about 30 days after we received your deposit. However, it would depend on our production line schedule(the timing clients place order)and the manufacturing process of the item.
About Payment Term
Q------What's the Payment Term?
A------ By T/T or L/C.

---
