High Temperature High Pressure Composite Pipe SAE100 R14 PTFE Flexible Hose Pipe Tube

Product Description

Product Description
High Temperature High Pressure Composite Pipe SAE100 R14 PTFE Flexible Hose Pipe Tube
This hose is made of high-quality PTFE
on the inside that gives them high
chemical and heat resistance,along
with a braided stainless steel outside which gives them high durability,
extreme pressure resistance, and a professional and high-tech appearance.
They are smooth bore for optimal flow.
PTFE exhibits unique properties including excellent chemical resistance,very high temperature resistance (up to 260°C, 500°F) and a frictionless, easy clean surface. These properties determine the types of application areas in which PTFE hose can provide the best possible hose for the job.
Inner Smooth Bore Hose
Construction:
Tube: 100% PTFE resin
Cover: single or double AISI 304 or 316 stainless steel wire outer braid
Application:
Design being used in automotive, fluid handling, chemical transfer, paint,pharmaceutical, food & beverage processing, cosmetics and general-purpose applications.
Inner Convoluted Hose
Construction:
Tube: 100% PTFE resin
Cover:single or double AISI 304 or 316 stainless steel wire outer braid
Application:
It features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routing, high temperature media transfer and general-purpose applications.

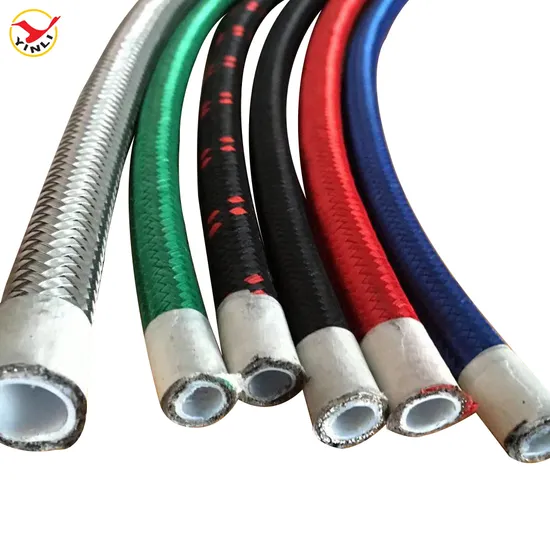

Different color outer braiding PTFE R14 hose

PTFE R14 hose plywood packing

PTFE R14 hose reel packing

Size(Inch)	ID(mm)	OD(mm)	Working Pressure (Bar)	Min.Burst Pressure(Bar)	Min.Bend Semidiameter(mm/±3mm)
1/4	5.75-6.55	9.85-10.55	151	450	32
5/16	7.75-8.55	12.25-13.15	126	370	36
3/8	9.14-10.25	15.85-16.55	105	324	59
1/2	12.45-13.25	18.45-19.35	90	270	82
5/8	15.35-16.25	24.85-25.55	72	255	95
3/4	18.6-19.85	28.25-29.55	60	231	113
7/8	21.84-22.86	32.25-33.55	52	189	145
1	24.89-26.16	35.55-36.85	47	144	189

Production flow
QC System
We keep data test and record in every step to control the dataOnly well packaged goods are allowed to be put into warehouse
Relative products
Steel wire braided hydraulic hose(one or two steel wire braided )
SAE 100R1AT/DIN EN853 1SN/DIN-EN857 1SC/SAE 100R1A/DIN EN853 1ST
SAE 100R2AT/DIN EN853 2SN/DIN-EN857 2SC/SAE 100R1A/DIN EN853 2ST
SAE 100R5/SAE 100R16/SAE 100R17/Pressure washer hose
Multi spiral hydraulic hose (four or six high tensile steel wire spiral
DIN EN856 4SP/SAE 100R9/SAE 100R12/DIN EN856 4SH/SAE 100R13/SAE 100R15
Textile Braid Hydraulic Hose
SAE 100R3/SAE 100R6
Thermoplastic hydraulic hose
SAE 100R7/SAE 100R8
Other hydraulic hose
SAE 100R4/suction oil hose
SAE 100R14/PTFE HOSE
Industrial rubber hose
steam hose
Dredging hose
Air/Water hose
Fuel/oil hose
Water suction/delivery hose
Sandblast hoseComposite hose
Cement rubber hose
Concrete rubber hose
Chemical rubber hose
Food hose
Flexible stainless steel metal hose
Company Profile
FAQ
Q1. Are you factory?
A. Yes, we are a factory since 1997, which have more than 20 years experience on rubber hose production.
Q2. Do you produce embossed marking ?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, it's available except famous brand which are not allowed.
Q4. What is the biggest size you can produce?
A.Hydraulic hose inner diameter size up to 304mm, industrial rubber hose inner diameter size up to 1300mm.
Q5. Is colorful hose available?
A. Yes, we can produce the hose color buy your requirements.
Q5.What is your payment terms?
A. 30% deposit, 70% before delivery.
Our team

Packaging & Shipping
Hengshui Yinli Rubber Products Co.,LTD
Add: North of Jinglong road , Jing County, Hengshui City, Hebei Province, China
