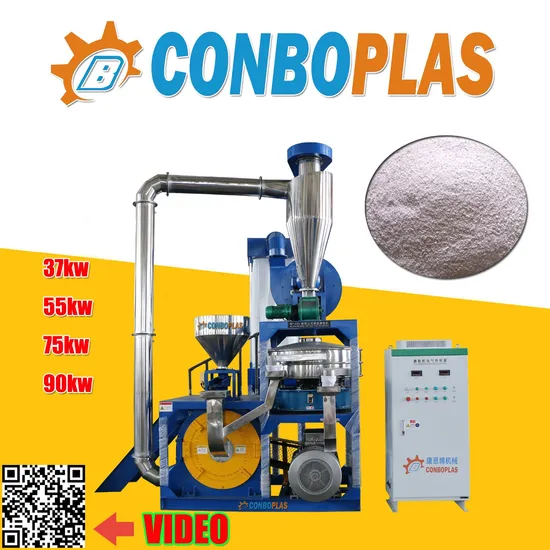

Top Good Best Quality Plastic PVC Ceiling Wall Panel Grinder Machine

Product Description

Product Description
This machine can be used for powder processing of polyethlene (PE), polyvinylchloride (PVC), polypropylene (PP), polystyrene (PS), ABS, nylon and other materials.
Features
1. The new disc design is used, high-yield,strong resistance and the life of grinding disc is double the ordinary.
2. The use of newly designed professional bearings, and reached a high rotation rate, at the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
3. Installation and maintenance easy, open the door to cover clean-up.
4. Milling process of the whole seal, without dust leakage.
5. Full automated, automatic feeding, the materials and sorting.
6. Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning.
7. The host used the water and wind double cooling systerm, rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamberas soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.
Product Parameters

Item/Model		SMW-500	SMW-600	SMW-800
1. Blade diameter		483±1mm	583±1mm	783±1mm
2. Power	Main motor	37kw	55kw	75kw
	Blower	3kw	4kw	11kw
3. Ouput size		10-100 mesh 140μm-1400μm	10-100 mesh 140μm-1400μm	10-100 mesh 140μm-1400μm
4. Capacity		PVC: around 250kg/h	PVC: around 350kg/h	PVC: 400-800kg/h

Remarks: all the information above is only for your reference; please gather the exact data by contacting us. Detailed Photos
Electric Components
Business Cooperation
PLEASE FEEL FREE TO CONTACT US FOR FURTHER INFORMATION. THANKS!

---
