Ring Die Gear Type Animal Feed Pelletizer Machine

Product Description

Product Description

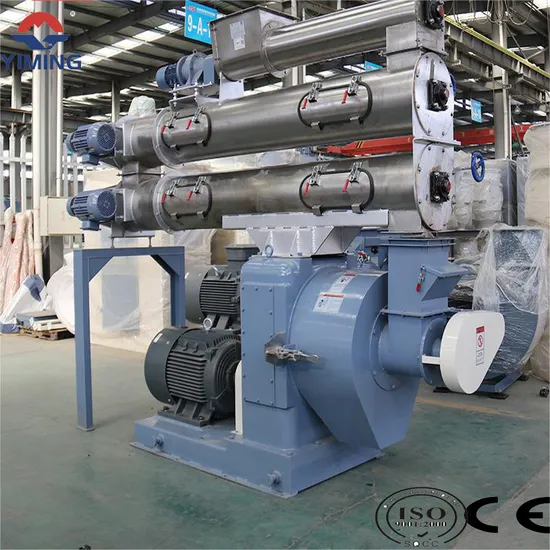

Ring die gear type animal feed pelletizer machine
(1) The latest technology adopted to product many kinds of feed.
(2) The bearings, oil seal, O-Rings of the drive part are all import.
(3) The design, quality and facade of the machine is in the international advanced level.
(4) The main drive part uses high-precision gear revolve, with this the production improved 15-20%.
(5) The gear revolve uses high-precision gear grinding, reduced the vibration and strepitus.
(6) The outside painting is sprayed, light and fastness.
(7) It improves the efficiency and reduces the labour intensity.
(8) The material of conditioning system is stainless steel,sanitary, the service time of it extend.
(9) There are several air inlets to add steam, it made the material heated enough, the effect of it is better.
(10) The engine oil circulating cooling lubrication system improves the cooling and lubrication effect of the key bearings.
Product Parameters

Model	9KLH250	9KLH304	9KLH350	9KLH400	9KLH420	9KLH508
Main Motor Power (kw)	22	30/37	55	90	110	132-160
Conditioner Power (kw)	2.2	3.0	3.0	5.5	5.5	7.5
Feeder Power (kw)	0.75	1.5	1.5	1.5	1.5	2.2
Capacity (t/h)	0.5-1	2-3	3-6	5-8	6-12	10-20

Detailed Photos
Workshop processing ability
Packaging & Shipping

Customer Visit

---
