Kzl160 Dry Wet Particles Homogenize Lump Material Crushing Fast Granulate Machine Granulator

Product Description

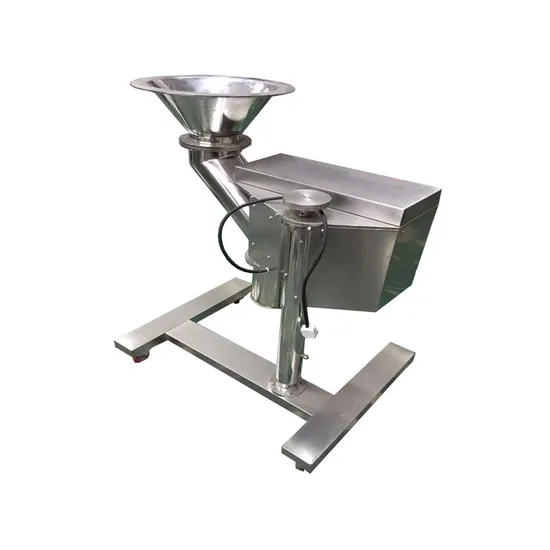

Dry wet powder extruding rotary drum pendular granulator
The particles with different shapes and specifications obtained by various granulating equipment are cut by the high-speed rotating blade combination of the machine, and discharged by the steel plate, then the particles with the same shape and specification can be obtained.
After the raw material enters the feeding port of the granulator, it falls into a cylindrical workroom. The rotating rotary knife acts on the raw material, and the particles are thrown to the screen surface by centrifugal force. At the same time, the high-speed rotation of the rotary knife and the screen surface have a shear effect. The particles are crushed into a small granule between the rotary knife and the screen mesh and are discharged through the screen mesh.The distance between the knife and the screen and the speed of the rotary knife can be adjusted.

Model	KZL-80	KZL-120	KZL-160	KZL-180
Screen diameter(mm)	80	120	160	180
Capacity (kg/h)	50-200	100-300	150-400	200-500
Mesh size(mm)	1-8	1-8	1-8	1-8
Power(kw)	0.75	1.1	1.5	1.5
Dimension (mm)	630X430X900 (Height adjustable)	800X600X950 (Height adjustable)	930X650X1200 (Height adjustable)	930X650X1200 (Height adjustable)
Weight (kg)	90	110	120	150
Rotating speed(r/min)	0-1440	0-1440	0-1440	0-1440
FOB(USD)	1322	1479	1636	1800

FAQ
How to Order
1. Customer send us an inquiry.
2. Confirmmachine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation

---
