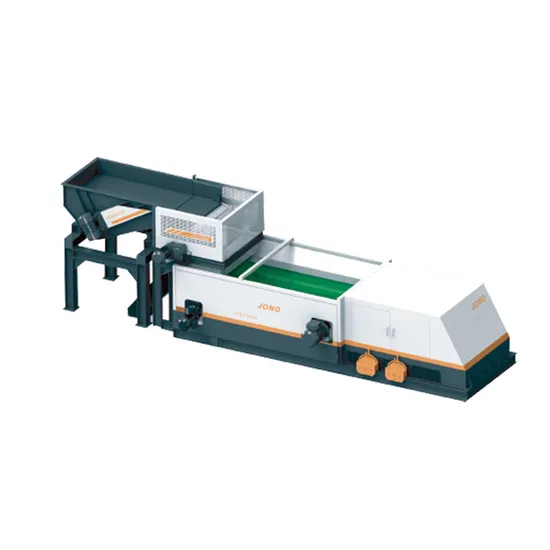

Industrial Nonferrous Metal Waste Aluminum Sorting Eddy Current Separator

Product Description

Detailed Photos
The Eddy Current Separator (ECS) is an advanced metal sorting unit that is capable of separating non-ferrous metals such as aluminium,copper,brass,alloy from dry recyclables. JONO eddy current separator can produce higher purity and increased yield of better separation of aluminum cans from PET plastic beverage containers.Nowadays it became the most economical beverage bottle sorting and recycling equipment.
Working Principle
The principle of the eddy current separator is to use the magnetic field of the electric conductor transform to produce the force and to separate the conductor from the non-conductor. Magnetic roller is installed on the high-speed belt discharging end, with high speed rotary motion during operation, the material in the high-speed belt were uniformly distributed in the surface of the belt, when the metal into the magnetic roller magnetic field, by cutting the magnetic induction line to generate force ,kick the non-ferrous metal into specific area. Remaining materials will fall into the other area.
The eddy current separate can sort out non-ferrous metals such as cans, pull rings, copper and other plastic, fabric, wood bamboo, masonry and so on, which can reduce the generation of dioxin and re-use high-value recyclable resources.

Product Parameters
FeaturesQuick maintenance check due to a window installed on the maintenance door .Minimum maintenance work due to anti-winding design.Efficient operation with electrical drive.Save space due to compact construction design.Optional frequency converter.

Model	1FAX2003A
Eddy current magnetic roll motor	7.5KW,ABB
Belt gear motor	4KW,SEW
Belt maximum velocity	3 m/s
Capacity	20 m³/h
Belt width	B=2000mm
Machine Size	8735*3115*3109mm
Weight	5250kg
Including	2 sets of Mitsubishi frequency converter,1 set of Siemens PLC, etc

Company Profile
JONO was founded in 2006 and is located in Wujiang District, Suzhou. The company has a floor area of 25,000 square meters, more than 80 design researchers, more than 200 employees and more than 150 patents. It is a new landmark of Wujiang enterprise, also a national high-tech enterprise, has been rated as a waste sorting leader for four consecutive years by the industry association.
First stage plant covers and area of 27000 square meters, whose floor area is 34000 square meters and the overall investment is 100 million RMB. on March 18, 2015, the construction work was started. it is equipped with technology institute, science and technology demonstration hall, pilot test and industrial centeer, large-scale material test center, high- standard manufacturing factory.
Panorama Picture
Jono has a complete and professional group of teams of research and development design, project management, equipment manufacturing, electrical automation and solid waste recycling waste recycling operation. Each team can be either independent to provide customers with services such aselectrical automation, equipment manufacturing, technology development and other professional services, or jointly provide customers in MSW sorting or recycling industry with complete solutions and whole plant EPC project general contracting services.
Factory and Workshop Pictures
Sucessful Projects
By 2018, JONO has undertaken more than 80+ EPC Projects, which are distributed in more than 40 cities . Our equipment is capable of handling more than 50,000 tons of waste every day.Through persistence and accumulation, we have the proprietary knowledge of total solutions in eight segments, including Municipal Solid Waste (MSW), organic waste, decoration waste, construction waste, recyclables, bulky waste, industrial waste and landfill waste.

Jono Projects All Over the World
6 Key Technology

Artificial Intelligence Sorting	Biological Treatment
Mechanical Shredding	Conveying&Storage
Mechanical Sorting	Mobile Solutioins

7 Solutions

Municipal Solid Waste	Landwill Waste
Organic Waste	Construction Waste
Recyclables	Bulky Waste
Industrial Waste	Decoration Waste

Certifications
Partners and Clinets

Lindner, Austria. Lindner was frormed in 1948. As a specialist in shredding technology in Europe, it is also one of the famous waste shredder manufacturers.

BRT-Harter, Germany. It is the leading company in the field of Mechanical sorting. The sales of Bag-opener takes 60% of the European market share. The sales of ballistic screen is over 500 sets globally, the machines provided by BRT-Hartner are used in more than 1000 countries.

MVT, Italy Founded in 1968, it is a market leader in the bio-drying, compost and in the design, construction and installation of air suction and purification systems which remove dust, fumes, vapours and Volatile Organic Compounds. Now globally over 50 projects have been sucessfully completed.

FAQ
YOU MIGHT INSTERESTED IN FOLLOWING QUESTIONS
1. Are you manufacturer or trading company?
We are a professional recycling machines manufacturer for more than 15years we supplying full technical support and solutions, timely and professional service, always effort on quality, honest, win-win business for every client.
2. How do you assistant to install the machine on worksite?
We are experienced on more than 80 projects, engineer and technicians will assistant client on construction, installation, commissioning.
3. How can I get spare parts for replacement in other countries?
Wearing parts like blades, it is necessary to buy with machine, other parts in stock could be delivery out by express if urgent or by sea within 5days.
4. Can I use mark machine with different LOGO and color?
Yes, please confirm details with sales.
If you have any need ,pls feel free to contact us.

---
