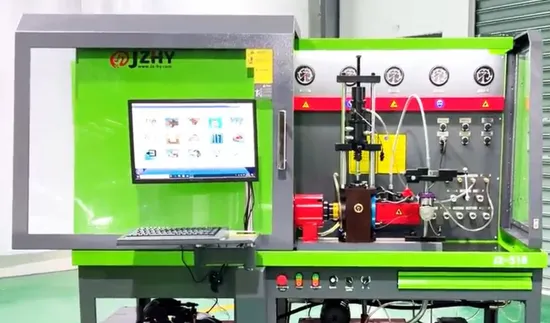

Diesel Electronic Unit Pump Electronic Unit Injector Common Rail Injector Cr Pump Test Bench

Product Description

Multifunctional Function Common Rail Pump EUI EUP Injector Code BPI Test Bench
Standard Functions:

Test EUI & EUP
Test HEUI common rail pump
Test piezoelectric injectors
Test high pressure commom rail pump
Test smart injector

Optional Functions:

Test the 4-pin injector
Generate injector QR code
Test X15, Q60 HPI
Generate VDO-I IC code
Generate C2i, C3i code
Generate piezo IMA, ISA code
Generate XPI Injector correction code
Technical Parameters

Technical Parameters
Model Number				JZ-518
Color				Green/Red
Frequency				50Hz / 60Hz
Motor Height				125 MM
Main Output				15 KW
Speed				0~3500 RPM
Speed Control Mode				Frequency Converter
Diesel Motor Output				5.5 KW
Diesel Oil Supply Output				0.75 KW
Oil Tank Cooling Output				105 W
Power				380V AC 3-Phase-4-Wire
Cooling Systerm				Air Conditioning (1.5P)
Diesel Tank Volume				40L Filtration Accuracy:3μm
Fuel Temperature				40ºC ± 2ºC
Heating System				Air Conditioning
Nozzel / Pump Flow Sensor				Gear Flow Sensor
Flow Metering Unit				0.008~2L /min
Control Return Voltage				DC 12V / DC 24V
Max Common Rail Pressure				0-2700 Bar
Rail Pressure Testing Accuracy				±5 Bar
Diesel Oil Supply Pressure				0~2.5 Mpa
Injection Frequency				400-6000 n/M
Pulse Width				100-3000 μs
Machine Dimension				1880*1020*1750MM
Packing Dimension				1980*1160*1930MM
Net Weight				609KG
Gross Weight				684KG

Related Products and Fixtures
Packing and Delivery
Our Company
Exhibition
Contact Us
Leen | Sales Manager

Wuxi Chengshunda Automobile Technology Co., Ltd.
Address: Building 8, Tianxi Jiangyin Zhizao Garden, No. 117 Xinzhuang Road, Zhutang Town, Jiangyin City, Wuxi City Jiangsu Province China
Website: jm888888.en.made-in-china.com

---
