Product Details
Product Description
Product Description
Specification

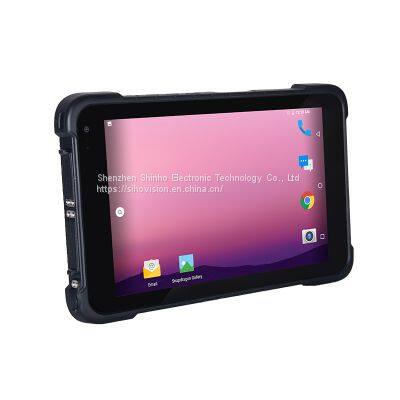

| Model:R-Q86NL |
| PC |
| CPU | Qualcomm(OCTA Core), 2.0GHz |
| OS | Android 9.0 |
| RAM | 4GB LPDDR3 |
| ROM | 64GB |
| Network connections |
| WIFI | 2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac) |
| Bluetooth | BT4.1 (BLE) class1 transmission distance：10m |
| 3G/4G | LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 |
| WCDMA 1/2/5/8 |
| GSM 2/3/5/8 |
| Basic parameters |
| Dimension | 228 x 145 x 16.5mm |
| Weight | device unit 715g |
| Device Color | black |
| LCD | 8 inch IPS 16:10，800*1280/1920*1200 |
| Touch Panel | 5 points Capacitive, G+G |
| Camera | Front 5.0MP Rear 13.0MP |
| I/O | HDMI 1.4a Type C x 1, |
| USB 2.0 x 1, Type C x 1, |
| SIM Card x 1, TF Card x 1, |
| 12pins Pogo Pin x 1, |
| Φ3.5mm standard earphone jack x 1, |
| Φ3.5mm DC jack x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A |
| GPS | support GPS, Glonass |
| Battery |
| Capacity | 3.7V/8500mAh |
| Type | Built in polymer lithium ion battery |
| Endurance | 8hrs (default 50% volumn, default 400 lumens brightness, play 1080P HD video) |
| Reliability |
| Operate Temperature | -20 °C ~ 55 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| IP Grade | IP67 |
| Optional modules |
| NFC | Support ISO/IEC 14443A protocol, Card reading distance: 3-5cm |
| 1D | MOTO SE655E100R, Optical Position: 5mil, Scan speed: 50 times/s |
| 2D | Zebra SE2707, Optical Position: 5mil, Scan speed: 50 times/s |
Certifications
Company Introduction
FAQ
1. We offer a life-long maintenance that is free in the one year.
2. In the two year after you received the products , if there is quality problem happening to the products, pls send us the pictures or video to showing the fault phenomenon, so can help our technicians to analyze the cause of problem, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and resend it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the two year of free warranty, we will charge you the factory cost for the replaced accessories, free for maintenance.
6. If your order comes to a certain quantity, we will provide you some spare units, for replacing the defective product. The number of spare units depends on the quantity of your order and the model of the products.
7. Pls feel free to contact our customer service team. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
>>
