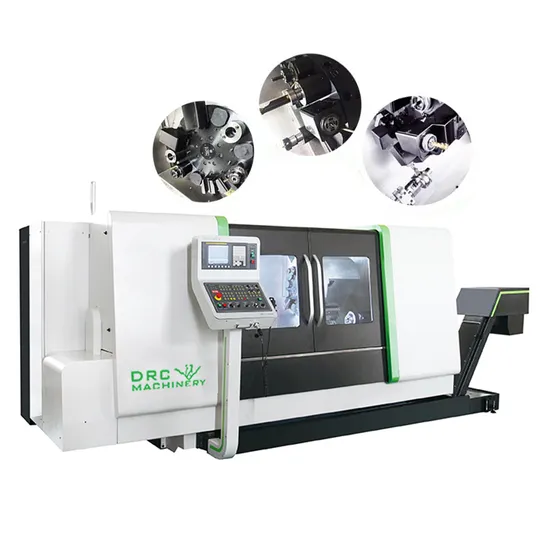

Dual Turret Turning Milling Metal Cnc Lathe Machine
Machine Description CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. The machine machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the right end of the fixed protective cover, and the ergonomic swing design makes the operation more convenient. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.
Overall: The machine tool has a mechanical, electrical, and hydraulic integrated layout. The 45° overall slant bed has the advantages of compact structure, high rigidity, smooth chip removal, and convenient operation. The guide rail type is a rolling guide rail, and the driving parts are high-speed silent ball screws. It has the advantages of fast speed, less heat, and high positioning accuracy; the machine tool is fully enclosed protection, automatic chip removal, automatic lubrication, automatic cooling.
Spindle:
The main drive unit of this machine tool is driven by Japanese FANUC 11/15kw high-performance servo motor, which drives the spindle to rotate through a pair of pulleys. The spindle speed range is 30-4500r/min. The front support of the main shaft adopts three-set high-precision angular contact ball bearings, and the rear support adopts two high-precision angular contact ball bearings with large apertures to meet the bearing requirements of axial and radial cutting forces.
Tailstock:
The hydraulic cylinder is used to drive the integral mobile tailstock. The structure is simple, with high precision, high rigidity and reliable performance.
Turret:
The machine used servo power turret by SAUTER, with fast tool change speed and high reliability.
Drive:
The X-axis and Z-axis driving adopts FANUC high-performance servo motor, with high positioning accuracy and flexible and reliable action.
System:
The control system is FANUC 0iTF plus, using high-performance AC spindle motor and servo motor.
Main Drive Spindle Motor: Main drive system using FANUC/SIEMENS high performance servo spindle motor, through V-belt transimission power, to the patent design of high rigidity spindle structure with 3 angular contact ball bearings in front and 2 large aperture angular contact ball or roller(optional) bearings in rear side, to fulfil axial and radial cutting carrying requirements at same time.
Servo Tailstock: Substantially shorten un-processing time due to servo driven. high rigidity tailstock. Less operation steps. Setup time: reduce 50%. Operation time: reduce 20%. Programe different pressure by codes
Sub Spindle: Built-in Motor Spindle : High Precesion: The bigger spindle bearings and the appropriate wide spacing between the guideways ensure that HT series machines by high accuracy and rigidity.
Iron Bed: High stability and perfect machining results thanks to the integrally molded massive hT300 cast iron bed.
Precision heavy cutting slant bed turning center Features: Thanks to intergrated into machine CNC control, programming setup is direct and simpler. Automatic truss delivery system with 3 jaws clamping grapper and rotating cylinder. Optimized housing simplified equip ment maintenance. Linear robot system with high speed high precesion gear rack struc-ture. Telescop arm optional ready for low workshop roof endusers. Work piece measuring system tool measuring system. All new overall outlook design style. Automatic truss delivery system optional for all HT series machine models Developed automatic truss delivery system based on HT series, is specially designed for HT models. DRC Machinery provides one-stop service of complete intergrated system including turning center and automation system. Therfore machines and automatic system only need one control system to manage all jobs. This helps maintain and operate the whole system more easier. Up to 6 KGs work piece loading capacity, faster, simpler to operator and more flexible. Maximum availbale work piece size is p200*150mm.

Working Area
Swing over Bed	680 mm
Swing over X-slide	450 mm
Max. Turning Diameter	400 mm
Recommended max. turning diameter	250 mm
Clamping Chuck Diameter - main spindle	250 mm
X travel	225 mm
Y travel	±50 mm
Z travel	850 mm
Feed Drive
Rapid Traverse	X/Y/Z 24/12/24 m/min
Main spindle
Spindle nose	A2-8
Front Bearing Diameter	130 mm
Spindle bore diameter	87 mm
Max. bar capacity	65 mm
Main Drive
Power	15/18.5 kW
Max Torque	268 Nm
Max. spindle Speed	4000 rpm
Turret
Number BMT65 Tool Stations	12 pcs
Tool Reception according to BMT65
Shank diameter	25.40 mm
Indexing Time 30° with locking	0.35 sec.
Indexing Time 30° without locking	0.12 sec.
Driven tools characteristic
Number of Driven Tools	16
Rated. Power	3 KW
Max. Torque (40% DC)	35 Nm
Max Speed	3000 rpm
Coupling BMT	45
C-Axis - Main spindle
Speed Range	100 rpm
Torque	268 Nm
Sub-spindle
Type Built-in
Sub-spindle trave	1850 mm
Sub-spindle nose	A2-6
Front Bearing Diameter	100 mm
Max.speed of sub-spindle	5000 rpm
Rated power	15 KW
Max.torque	103 Nm
Weights
Net weight of the machine with chip conveyor	approx 6600 kg
Dimensions
Machine with Chip Conveyor L x B x H	approx 4820/2250/2150 mm
discharge of chips from the right side

---
