Dts1560 Three Phase Four Wire Energy Mete

Product Description

DTS1560 Information
Zhejiang HUADU DTS1560 Series Three Phase energy meter. It is designed for high level performance and are safe and fast to install.
"TAINIHAN" have a complete range of electricity meters for different applications, the meters are quick and easy to install.
It is highly accurate, durable, reliable, lower power consumptive, Creep proof and strong overloading capability. It according to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21
DTS1560 Specifications

1	Type	DTS1560 Register
2	Display	LCD 6+2
3	Accuracy	Class 1
4	Rated Voltage (Un)	3 X 110V/220V/230V/240V/380V/400V
5	Base Current (Ib)	5A, 10A,15A, 20A or other
6	Max Current (Imax)	20A, 40A, 60A, 80A or other
7	Frequency (Hz)	50Hz Or 60Hz (±5%)
8	Starting Current (mA)	0.4% Ib
9	Power Consumption of Current	≤2W 10VA Per Phase
10	IP Class	IP51
11	AC Voltage Withstand	2KV for 1 Minute
12	Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
13	Operating Temperature	-20ºC To +55ºC
14	Storing Temperature	-40ºC To +70ºC
15	Operating Humidity	≤75%
16	Storing Humidity	≤95%
17	Communication	N/A
18	LCD Display Backlight	Optional
19	Battery	N/A

DTS1560 Function in Display and monitoring
Register Display 5digits+1Decimal,
Impulse led indicator
L1 L2 L3 led indicator

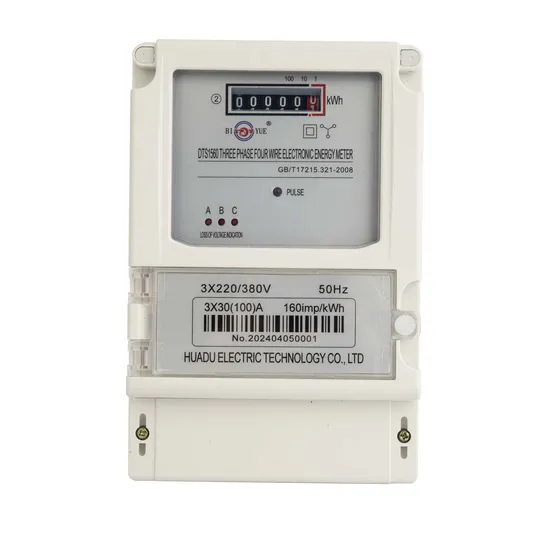

Front Side Photo
Left Side Photo
Right Side Photo
Back Side Photo
Top Side Photo
Bottom Side Photo
ABOUT HUADU
Huadu Electrical Technology CO.,Ltd is located in Wengyang industrial zone, liushi town,Yueqing City, Zhejiang province, China, which focus on electronic and electro-mechanical meter.
The company is a diversified enterprise integrates development, design, production and marketing together. Driven by innovation, Huadu keeps perfecting existing products and developing new product lines. We have developed a front board installed energy meter, an inserting installed energy meter a DIN-rail installed energy meter, According to meter functions, there are munti-functional energy meters, multi-rate energy meters, electric power line carrier wave energy meters, network energy meters, and multi-user energy meters in our product range. certification with superior quality are popular in the global market.
Our company posses high accuracy special device, advance technology, laborious workmanship and various styles. We also have rights for import and export, our products are widely sold well to southeast Asia, Middle East, South America and other areas.
We believe that our company will be more powerful and far better by your support!

---
