Full Automatic Double Stacks Napkin Paper Three Dimensional Packing Machine

Product Description

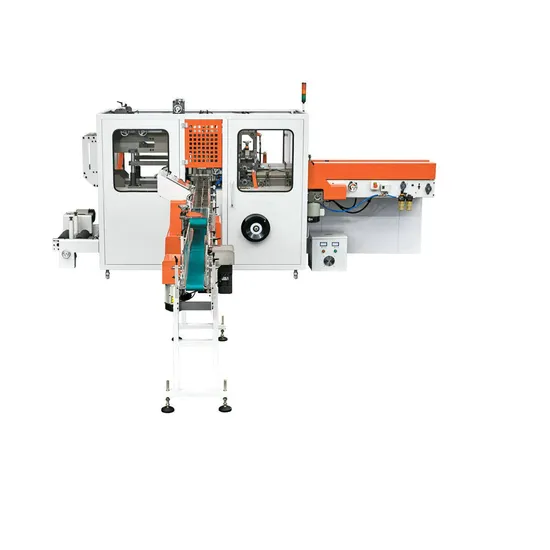

XY-BT-298 automatic tissue wrapping machine
Machine main features:
1. BT-298 high speed fully automatic facial tissue single wrapping machine is suitable for automatically packing V fold hand towel, facial tissue and napkin.
2. Tissue arraying and feeding adopt variable frequency control modes.Packaging film hole punching,film pulling & position,film cutting off,tissue center sending and other actions are controlled by servo motors.This machine has advantages of complete operation configuration,high working efficiency, easy to operation,wide sizes application range,quickly for size changing,easy to maintenance and low cost for using etc.
3. Basic operation function configuration:Has functions of Auto tissue shaping,auto tissue speed detection and speed decline,auto alarm and stop for twin tissue feeding or get stuck,auto detection for tissue height,alarm and stop when height error,auto detect for film roll volume,auto alarm and strop when film release unit get stuck,tissue hook shaping,inching operation,link operation etc.
4. Max. stable production speed is 100 packs/min.
Technical parameter and features:

Features	Description
Paper sorting mode	Automatic Smart Feeding
Paper sorting mode	105packs/min
Stable production speed	≤100 packs/min
Packaging film changing	≤2min
Paper length	95-210mm
Paper height	35-100mm
Paper width	95-150mm
Mould	3 sets
Machine dimension	Length 4650 mm Width 3650 mm Height 1800 mm
Machine weight	≤ 3500 KG
Packaging material	PE,BOPP,CPP etc
Film thickness	0.035mm-0.05mm
Max.film roll diameter	500mm
Film core diameter	76mm
Max.film width	340mm
Compressed air	Pressure air≥ 0.5MPA
Power supply	380V/50HZ
Total power consumption	6 KW

Detail pictures:

---
