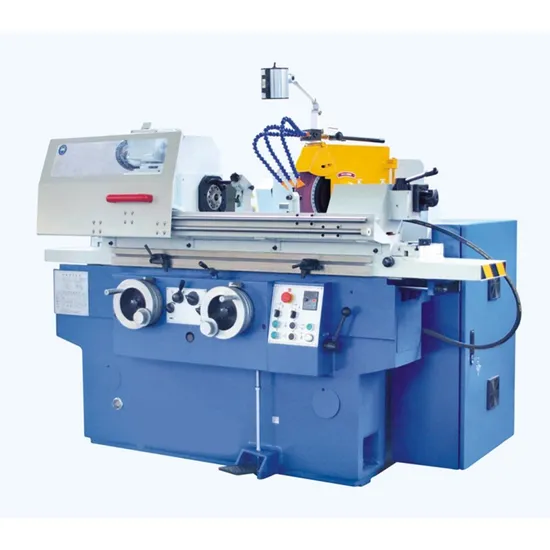

M1320h-a Transverse Cylindrical Grinding Machine

Product Description

Product Description
M1320H-A transverse cylindrical grinding machine is inM1320H cylindrical grinding machine based on improvementof new products , with simple and convenient operation,higher end surface machining precision, is suitable for thegear manufacturing industry , and has the very high costperformance.


Product Parameters

Description	unit	M1320H-A×300	M1320H-A×500
External grinding diameters	mm	φ8-200	φ8-200
Center height	mm	135	135
Max.travel of table	mm	550	850
Hydraulic traverse speeds	m/min	0.1~4	0.1~4
Max.workpiece weight	kg	50	50
Grinding length External	mm	300	500
Swivel range of worktable		-3~+9°	-3~+7°
Max peripheral speed of grinding wheel	m/s	38	38
Externalwheef size	mm	Maxφ400×50×φ203 Maxφ280×50×φ203	Maxφ400×50×φ203 Maxφ280×50×φ203
Workhead and tailstock center	morse	N0.4	N0.4
Machine motor power	kw	5.625	5.625
Overalf dimensions(L×WxH)	mm	2500×1600×1500	3000×1600×1500
Machine weight	kg	2500	3000

Detailed Photos
Our Advantages
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
