Garbage Truck 10-15 Cbm Heavy Duty Truck Refuse Collection Compactor Truck Sinotruk HOWO Euro 2 for Africa

Product Description

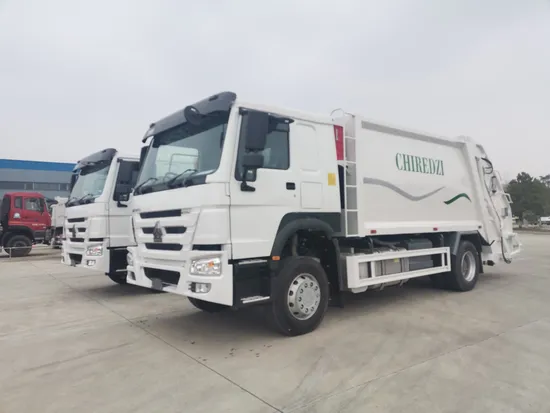

15CBM Garbage Compactor Truck SINOTRUK HOWO Classic Model
Product Description
15cbm Refuse Garbage Truck Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.
Hook lifting arm garbage truck Side-loader garbage truck Garbage transit station
Product Parameters

Vehicle Description
Overall dimensions	9450*2550*3450mm
GVW	18000kg
Chassis brand	SINOTRUK
Traction type	4*2

Up-parts Specification
Dustbin volume	15cbm
Material & thickness	Side	4mm Q345
	Bottom	5mm Q235A
Type of Rear garbage filler(Rear Turnover device)	1.Hanging trash bin
	2.Swing arm
	3.Dustpan
Control system	Electrically Controlled Hydraulic + Manual Hydraulic
Type of compactor	Fill, push and compression
Garbage compact density	0.9±0.05 T/cbm
Sewage water tank	Rear	About 500L, on the bottom of rear filler
	Front	About 230L, on the front of garbage van
Max compact	≥141 KN
Max push	≥189 KN
Tailgate ascending Angle	~95°
Cycle of loading	≤40s
Cycle of discharge	≤45s
Hydraulic pressure system working pressure	16 Mpa
PLC	Importation PLC (Programmable controller)
Gear pump	Made in China
Multi-way valve	Air controlled, Made in China
Hydraulic oil cylinder	Made in China
Hydraulic rubber hose	Made in China

Chassis Description
Cab	Sleeper cabin, 2 seat with one bunk with A/C
	all-steel forward control		55 hydraulically tiltable to the front
	adjustable air driver's seat		adjustable rigid co-driver's seat
	with ventilation system		exterior sun visor
	stereo radio/usb interface		safety belts
	adjustable steering wheel		air horn
	with 4-point support fully floating suspension and shock absorbersbb
	2-arm windscreen wiper system with three speeds
Engine	Brand	SINOTRUK WD615.62
	Model	Diesel: 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-char in and inter-cooling
	Emission standard	EURO 2
	Displacement (L)	9.726
	Horse power	266HP/196kW
	No of cylinder	6
	Maximum torque	1100N.m @ 1100~1600rpm

Company Profile
Hubei Suny Automobile and Machinery Co., Ltd is the professional company which is abide by the business integrity and
quality win for the purpose of customers' intentions.
We aimed to be the access for you in getting the most suitable Chinese heavy-duty and special purposed trucks, which
are widely used in environmental protection, city construction, transportation and many other fields.
Over the 10 years experience in manufacturing, we have established long-term and stable relationship with the customers
all over the world and Chinese main manufactures.
With the years of experiences in exporting, we have got the trust from lots of clients who come from different districts, such
as the whole Africa, South America, Southeast Asia, Mid-east, etc. We will keep striving to improving our profession and
efficiency, meanwhile continuously promoting our service for all the customers all over the world!
RFQ
1. What is your terms of payment?
T/T with 30% deposit, and 70% balance will be paid before delivery.
We will show you photos of the products and packages before you paying the balance.
2. What's your minimum quantity?
1 set.

3. What is your packing?
Naked packing, we transport our trailers by bulk cargo carrier, ro-ro or 40/45 HQ or land transportation.

4. How about delivery time?
Generally speaking, 25 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
5.How to judge the quality of products?
We will show you photos and videos, trading order. You are welcome to visit our factory at any time.
6.Why you trust and choose us?
--Complete production line, from trailer Design to Delivery.
-- ISO 9001: 2008 and CCC quality certificate.
--Use 100% famous brand spare parts you want.
-- Accept customization requirements.
--We are trusted by the clients from Africa, Australia, South America, Indonesia and so on.
--We accept flexible payment terms,T/T, L/C, or other .
7. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
Please contact us for more details
Website:http://sanyan.en.made-in-china.com
24hours online,waiting for your kind inquire.
Welcome to our factory,We will pick up you from the airport.
