Automatic Door Frame L-Shaped Splicing Machine (can be customized according to customer requirements)

Product Description

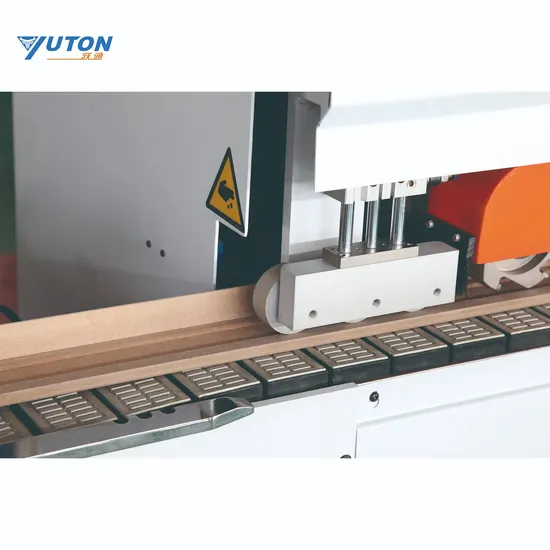

Automatic L-shape splicing machine MDZ565
Function:
This machine is specially for the needs of door frame "L" shape architrave production, including the function of splicing, edge trimming, corner rounding & groove milling.
Equipped with material storage, automatic feed in & feed out.
Function of each model:
Workpiece:
Customer workshop
Motor power:

Pre-milling motor	2.2kw, 9000rpm
Double R motor	1.5kw, 12000rpm
Corner rounding motor	1.1kw, 12000rpm
Inner slot motor	2.2kw, 9000rpm
Buffing motor	0.37kw, 14000rpm

Both type of connection are available:
Technical specification:
Voltage: 380V, 50HZ, 3Phase

Panel thickness	12-25mm
Panel width	≥50mm (max 100mm when double R)
Panel length	900-2400mm
Belt width	15-50mm
Belt thickness	3-5mm or 3-10mm (max 5mm when step connection type) (max 10mm when straight connection type)
Min distance between panels	800mm
Feed speed of panel	24m/min
Air pressure	0.6Mpa
Overall dimensions	11500*1350*1650mm
Weight	2300kg
Voltage	380V, 50HZ, 3Phase

About Us Yuetong company is a national high-tech enterprise specializing in the R&D and manufacturing of automated wooden door production equipment, a chief supervisory enterprise of the China Forestry Machinery Association(CNFMA), a director unit of the China Wood & Bamboo Industry Technology Innovation Strategic Alliance, a national specialized and special small new giant enterprise, a national intellectual property advantageous enterprise, Ministry of industry and information Technology "National Intelligent Manufacturing System Solution Provider", a service-oriented manufacturing demonstration enterprise in Jiangsu Province, and a key cultivation enterprise for the integration of informatization and industrialization.
The company integrates development and research, product manufacturing, automation program provision and implementation, and has established Jiangsu Province Engineering Research Center(ERC), mechanical engineering technology research center, enterprise technology center and postgraduate workstation. We also independently developed a variety of CNC automation products and won the National Key New Product, China Excellence Patent Award, China "Mechanical Industry Science and Technology Award", China "Forestry Industry Innovation Award", Jiangsu Province Science and Technology Progress Award, Jiangsu Province's first (set) major equipment products and many other honors, drafted or participated in the drafting of all wooden door automation equipment industry standards, participated in the national 12th Five-Year and 13th Five-Year forestry key research and development plan projects, and undertook the national key research and development plan - "Robot automation production demonstration line for customized woodworking furniture manufacturing".
The company has a high brand reputation in the market segment, TATA Group, Jiangshan OUPAI, OPPEIN, Nature Home, SUOFEIYA, Country Graden, Mengtian Group, Dalian TOSTEM, NIHON FLUSH, Anhui KOJO, Hefei ZBOM, Shandong XINDI, Hubei QIANCHUAN and other national wooden door head enterprises have repeatedly purchased our company's wooden door automation production lines. Our products are also exported to Canada, Japan, Israel, Iran, Russia, Czech Republic, Spain, Vietnam, Singapore, Malaysia and other more than 50 countries and regions.
ISO9001 certificate

---
