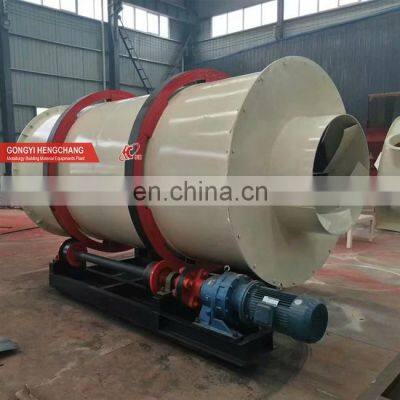

Products DescriptionStainless Steel Industry Mini Biomass Salt Drum Dryer Rotary Drying Machine for SaleThree-drum dryer is also called three-cylinder dryer and triple-drum dryer. It has improved internal structure of monocular dryer, which prolongs the time of pre-drying of wet materials and wet materials in the machine, thus improving 50% to 80% of productioncapacity compared with original monocular dryer.Type of Three Pass DryerSBD-625SBD-6215SBD-6220Drying capacity6-8t/h10-15t/h20-25t/hLength2500mm2700mm5000mmDiameter of drum2200mm2600mm2600mmMotor powder5.5kw7.5kw*17.5kw*2Reducer modelXWD-5ZQ350ZQ350*2Speed of drum rotation4-10r/min4-10r/min4-10r/minMoisture of end products<5%<5%<5%Max.temperature inside700-750℃700-750℃700-750℃Outlet temperature60-80℃60-80℃60-80℃Burning coke quantity kg/t sand777Product ApplicationThe Rotary Drier is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. It can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made of rotary body, lifting blade, driving device,supporting device etc. The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient for transportation...Drying Materials: Powder, coal, sand, clay, slag, etc.The Rotary Drier is widely used in the field of building materials, metallurgies, chemical industry, cement and so on.Product &DetailsThe CylinderName: CylinderMaterial: Use high quality carbon steel or customer specified steelInternal structure: designed with internal blades and other devices Seamless weldingMain FeaturesName: Cylinder Brand: HengchangMaterial: high quality steel plate, customer can specify steel plate thickness and steel plate materialMachine PartsName: The baseBrand: HengchangMaterial: high quality steel plate, customer can specify steel plate thickness and steel plate materialMain FeaturesName:The whole dryerBrand:HengchangRotary dryer consists of the cylinder, before and after the roller circle, a large gear, gear roll, drag roller, a small gear, afeeding device, lifting plate, reducer, motor, feeding devices and other components.Working Principle1.The material first goes into the inside drum, because there are the spiral shape boards fixed in the drum, when the dryer make rotary working, the spiral shape board will stir the material and make the material do movement.2.When the material reaches the right side of the drum, it will go into the second drum for further drying.3.The same working principle, the material then goes into outside drum, during the drying working process, the material will make three times drying, so the material can be dried completely in this process.Company Information & CertificationHengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts..Customer Visit & Our Service(A) Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on theirinvestments. 1.Select equipment model; 2.Design and manufacture products according to clients' special requirement;3.Train technical personnel for clients; 4.Services during the sale;(B)Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3.Train the first-line operators;4.Examine the equipment; 5.Take initiative to eliminatethe troubles rapidly; 6.Provide perfect service; 7.Provide technical exchanges...(C).After-sale services:Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3. Train the first-line operators; 4. Examine the equipment; 5. Take initiative to eliminatethe troubles rapidly; 6. Provide perfect service;7. Provide technical exchanges...Customer SiteOur machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!Packing &DeliveryPackaging Details: Standard export packing, Spare parts in wooden case, big machines loaded incontainer,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agentto arrange thesea shipment for each client, competitive price, secure transportation. Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20 working days.FAQ1.In order to provide you the suitable quotation we need to know the following information:1).What is the raw material for the production line?2).What is the capacity per hour you required?3).What is the maximum input size of the raw material?4).What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.2.What about Warranty of the products?Hengchang Machinery grants our customers a Twenty-four-month-period warranty from the date of delivery for machines exported from us.During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.3.The reason you choose Hengchang Machinery :1).Professional manufacturer of supplying Dry mortar production line equipment,exterior wall paint, drying machine equipment, high speed dispersing machine, true stone paint filling machine, packaging machine equipment and other mechanical equipment 2).Experienced and professional R&D team and manufacturing team;3).Professional sales team consisted of dedicated, dynamic and innovative people with international version.4).Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway. 4.What is the difference between your machine and others’?Every machine is unique and has its pros and cons, as is every mine site. We can help you decide your unique situation and decidewhich tool is right for your job. 5.If you want to know more about our machine equipment, please send us inquiry or contact us directly.
>>
