Medical Mask Material Non-Woven Fabrics High Speed Roll Slitting Machine Rewinder Slitter Machine Suppliers

Product Description

Medical Mask Material Non-Woven Fabrics High Speed Roll Slitting Machine
Technical parameter

Machine model	HCH2-650	HCH2-1300	HCH3-1700
Unwinding width	650mm	1300mm	1700mm
Machine speed	300m/min	300m/min	300m/min
Slitting precision	±0.03mm	±0.03mm	±0.03mm
Unwinding diameter	φ1000mm	φ1000mm	φ1000mm
Rewinding diameter	2*φ600mm	2*φ600mm	2*φ600mm
Main servo motor power	4kw	5.5kw	7.5kw
Rewinding servo motor power	5.5kw	7.5kw	11kw
Installation dimension	2700*2000*1750mm	2700*2650*1750mm	2800*3150*1750mm
Machine weight	2000kg	3500kg	4000kg

Use
This type high speed slitting machine is the ideal processing machine for high demand of speed and precision of PE, PP, PET, PVC and other plastic film, paper, composite film, aluminum film, color film, all kinds of adhesive tape and label. It is the ideal model of film, thin-film processing and color printing company especially electronic products and up-market boutique packaging products.
Characteristic This roller slitting machine adopted friction shaft rewinding, which can achieve the perfect fixing for different kinds of materials rewinding. 2 servo motors independently control the unwinding and 2 pcs friction shafts rewinding, can insure the tension better, rewinding smoothly and slitting accurately.
Option: Automatic blades setting
Why us Product: 1. Technology
Mature and experienced technical team.
Continuous learning, R&d and innovation meet CE and SGS.
2. Quality
Using effective and high precision slitting.
Steel plate heavy machine body(45mm). Ensure the machine runs smoothly at high speed.
User-friendly control and long service life.
3. Detail
High tech and quality components.
Quality is our life. From the very beginning to the very end Loyal people attach great importance to quality controlling and repeated testing before delivery.
Deliver on time.
Service: Time is money, we providing quick, responsive, most precise service. Only when customers get success can LOYAL Company be developed, We treat every customer seriously and provide technical support for the whole lifetime. Loyal relationship is difficult to establish, we only loyal to our customers, time will tell you we are reliable, helpful and loyal!
More details of medical mask material non-woven fabrics high speed roll slitting machine

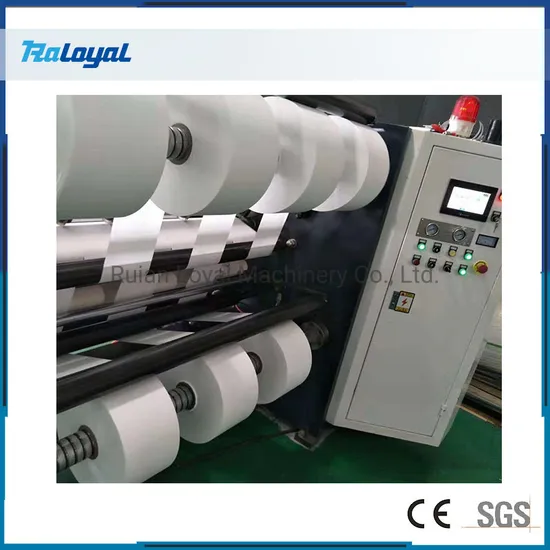

Running in client's factory
Contact us without hesitation! We are willing to send you in greater detail!

---
