Mercedes-Benz 6X6 Arff Vehicle Airport Fire Fighting Truck Engine Aiprot Tender Price China Factory New Diesel Heavy Duty Electric Isuzu Giga HOWO Man Guangdong

Product Description

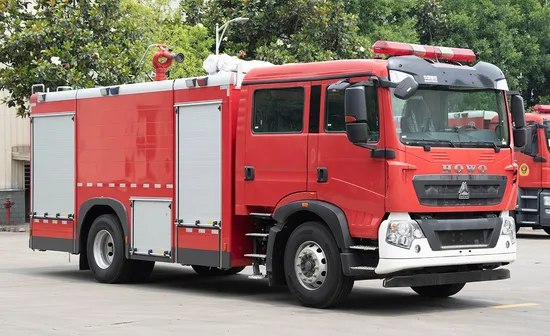

Product Description 1. Model: SXF5190GXFPM80 Water and Foam Tank Fire Fighting Truck
2. Dimension: Approx. 8640mm*2500mm*3730mm
3. Full Load Weight: Approx. 20000kgs
4. Number of the Crew: 6 (include driver)
5. Max. Speed: 90km/h
6. Compartment: Complete Aluminum Material and Never Rust
7. Capacity: 6000L Water & 2000L Foam. PP composite material liquid tank and Never Rust
8. Fire pump flow rate: 60L/s @ 10bar
9. Roof monitor flow rate: 48L/s
10. Painting: Red Color or Others
Company Profile CXFIRE, established in 1963, is the biggest fire trucks manufacturer in China with more than 60 years experience. The main manufacturing base is located in Chengdu of Sichuan Province with an area of 200,000 square meters and 600 staff members. More than 2000 units fire trucks and special vehicles are produced and sold every year.
CXFIRE has complete products system, including hundreds of fire trucks, fire equipment, fire fighting robots and other special vehicles. CXFIRE and its main products have obtained ISO, CCC, TUV, CE, EN and NFPA certifications.
CXFIRE products sell all over the world, including Asia, Middle East, Africa, Europe and America. CXFIRE has complete sales networks and after-sales service stations in global markets.
Technical & Process Advantages 1. Complete Aluminum Compartment and Never Rust. The compartment uses high-quality aluminum alloy profile, and the integral welded frame structure is made by the patented technology. It has a built-in bolt connection and the space could be adjusted easily. It has the advantages of high strength, corrosion resistance and light weight. All harnesses are preset in the groove to avoid wear.
2. High-Quality PP Composite Material Liquid Tank and Never Rust. PP is a special plate made of polymer composite materials to create a liquid tank for fire truck. It has the advantages of high strength, impact resistance, low temperature resistance and corrosion resistance.
3. Modular Control System. The control system adopts PLC intelligent program design and full electronic control operation. Different control program modules are available to choose according to the vehicle configuration. With waterproof and dustproof design, the protection level can reach IP56 or higher.
4. Modular Standard Parts. Water pumps, fire monitors, aluminum roller shutter doors, storage racks and pipelines are all manufactured by CXFIRE with modular design. It can not only ensure the quality of parts and the best match with the whole vehicle, but also ensure generalization and flexibility.
