PE Series Primary Crushing Equipment

Product Description

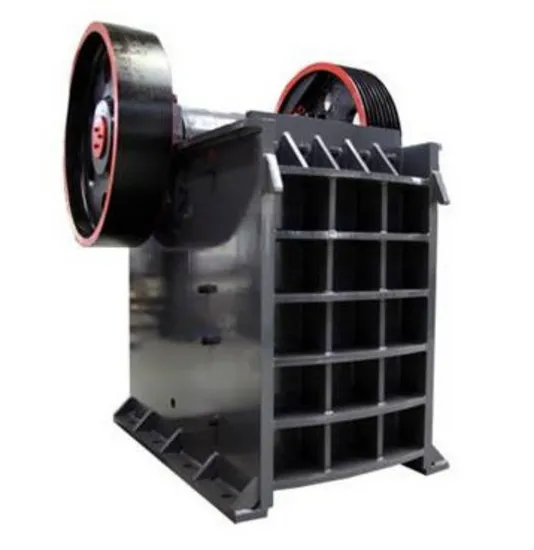

Product Description Jaw crusher machine is a coarse crushing equipment widely used in mining, construction, building materials, highways, railways and other fields.
Working Principle The working principle of the jaw crusher is based on the squeezing effect between the movable jaw plate and the static jaw plate. The motor drives the eccentric shaft to rotate through the belt, causing the movable jaw plate to periodically approach and leave the static jaw plate, thereby squeezing, rubbing, grinding and other multiple crushing processes for the material.
The structure of the jaw crusher mainly includes the frame, eccentric shaft, large pulley, flywheel, movable jaw, side guards, toggle plate, toggle plate rear seat, gap adjustment screw, return spring, fixed jaw plate and movable jaw plate, etc. Features include: Simple structure, easy to maintain and operate. The crushing ratio is large and larger materials can be broken into smaller particles. Stable performance, reliable operation, able to adapt to various harsh working environments
Machine Parameters

Model	Feed opening (mm)	Max feed size(mm)	C.S.S (mm)	Capacity (t/h)	Power (kw)	Overall dimensions (mm)
PE250*400	400*250	200	20-50	5­-20	15	1430*1310*1340
PE400*600	400*600	350	40-100	15-60	30-37	1700*1732*1653
PE500*750	500*750	425	50-100	40-110	45-55	2035*1921*2000
PE600*900	600*900	480	65-160	90-180	55-75	2290*2206*2370
PE750*1060	750*1060	630	80-140	110-230	90-110	2655*2302*3110
PE900*1200	900*1200	750	95-165	220-450	110-132	3800*3166*3045
PE1000*1200	1000*1200	850	200-300	280-560	110-160	5350*4280*3050
PE1200*1500	1200*1500	1020	150-300	400-800	160-220	6380*5310*3710
PE1500*1800	1500*1800	1200	210-360	520-1100	280	7460*6235*4249

Product Details
Application
Product Show
Crushing
Company Profile
Henan Kaichuang Machinery Equipment Co., Ltd. is a modern enterprise focusing on the research, development, production and sales of stone crushers. The factory is located in Gongyi, Zhengzhou, Henan, with advanced production equipment and strong technical force.
Our factory has an experienced R&D team who constantly pursues innovation and combines market demand and advanced technology to carefully design a variety of stone crushers with excellent performance, high efficiency and energy saving. These products cover jaw crushers, impact crushers, cone crushers, hammer crushers and other types, which can meet the diverse needs of different customers in the fields of ore crushing, construction waste processing, road construction and other fields.
The factory has a professional after-sales team to provide customers with comprehensive service support such as equipment installation and commissioning, technical training, and maintenance. No matter where the customer is, as long as they encounter a problem, we can respond quickly to ensure that the customer's production is not affected.
Over the years, our stone crushers have been selling well in domestic and foreign markets and have won widespread praise and trust from customers. In the future, Henan Kaichuang Machinery Equipment Co., Ltd. will continue to adhere to the business philosophy of "quality first, customer first", continue to innovate and progress, provide customers with better products and services, and contribute to the development of the stone crushing industry.

---
