Basic Info.
Machining Process
Hydraulic
Productivity
60 Cubic Meters/Hour
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000, CE
Revolving Speed
25.5r/Min
Lifting Hopper Motor
18.5kw
Transport Package
Nude Packed
Production Capacity
3000sets/Year
Product Description

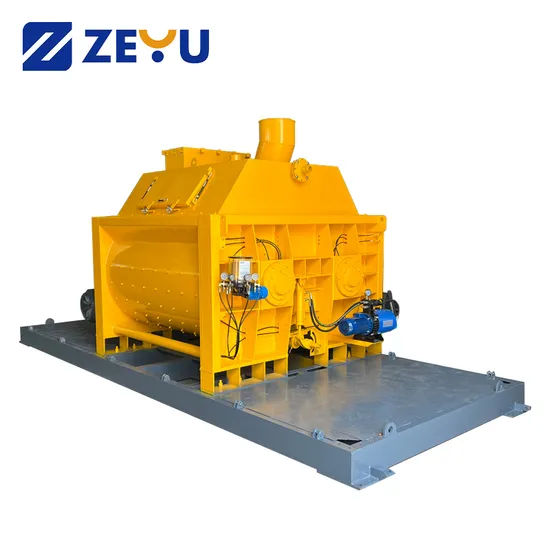

China High Quality Three-year Warranty JS1000 Double Shaft Concrete Mixer Detailed Photos
HIGH AND STANDARD STEEL MATERIAL, 100,000 mixing can be in guarantee for Quality
MODELS Like JS500, JS750, JS1000, JS1500, JS2000, JS3000, JS4000, JS4500 and can be customized
Product Description
All Mixer are designed and manufactured by ZEYU factory, Machine drawing and installation drawing will be showed to client in 2days after order
Product Parameters
| MODEL | Loading volume (L) | Unloading volume (L) | Maximum aggreate size (egg/gravel mm) | Mixing blade Revolving speed/Quantity | Mixing motor Model | Winding motor Model |
| JS500 | 800 | 500 | 80/60 | 35/14 | Y180M-4-18.5 | YEZ132S-4-5.5 |
| JS750 | 1200 | 750 | 80/60 | 30.5/18 | Y200L-4-30 | YEZ132M-4-7.5 |
| JS1000 | 1600 | 1000 | 80/60 | 25.5/20 | Y200L1-6-18.5 | YEZ180M-4-18.5 |
| JS1500 | 2400 | 1500 | 80/60 | 25.5/22 | Y225M-6-30 | |
| JS2000 | 3200 | 2000 | 80/60 | 23/20 | Y280S-9-37 |
| JS3000 | 4800 | 3000 | 80/60 | 23/22 | Y280M-6-55 |
Project Cases
Company Profile
Shandong Zeyu Heavy Industry Science and Technology Co., Ltd. (For short: ZEYU HEAVY INDUSTRY)----a new star in the field of Chinese mixing machinery. Founded in 2007, the company is a team of passionate men who have been engaged in mixing machinery for more than ten years. The company has more tha 120 employees, 30% of which are technical talents. The company's business scope covers: concrete mixing equipment industry chain comprehensive solution, stable soil mixing equipment, PC component special equipment, dry mixing / wet mixing mortar equipment. The company focus on the development, manufacturing and service of mixing equipment for long time.We have passed the "ISO9001 quality system certification, ISO14001 environmental quality system certification, OHSAS18001 occupational health and safety management system certification and EU CE certification" and strictly in accordance with the certification system standards.
Packaging & Shipping
>>
