Skymard 1.8ton Mini Excavator Xe15u 0.04cbm 9.8kw Crawler Excavator with Spare Parts for Sale

Product Description

Product Description

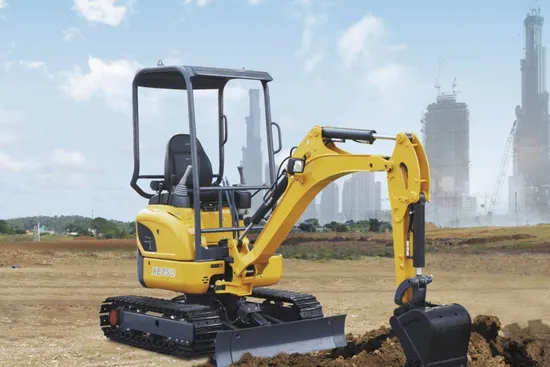

XE15U Mini Excavator
1. More energy-saving and environmentally friendly
*The mechanical fuel injection engine meets the National III emission standards, with strong power, energy saving and environmental protection.
*The key hydraulic parts adopt the latest technological achievements, with low energy consumption, fast response speed, precise control, and can maintain strong excavation capabilities and excellent operating efficiency.
*The engine and hydraulic system power are perfectly matched to ensure that the engine works in the optimal fuel consumption area, improve fuel utilization, and save use costs.
2. More efficient returns
*The tailless design is adopted to ensure narrow working conditions. The left and right deflection angles of the working device are 60° and 50° respectively, which can be combined with the upper vehicle rotation to ensure parallel excavation to the wall in a small space.
*The chassis has a telescopic function, which can improve the vehicle's passing ability.
*The new color screen LCD monitor meets ergonomic requirements, has more automatic control functions, and greatly shortens troubleshooting time.
3. More reliable and durable
*The four-point support cab meets safety standards, ensures strength and improves vision, and ensures higher operating safety. Focus on strengthening the stress resistance of the boom and dipper rod, and increase service life.
*The working pipeline and wiring harness are built-in, which can provide more effective protection and extend the service life.
*The lower frame and box-type bulldozer structure are optimized, which are more solid and durable.
4. More comfortable and safe
*The newly designed hand rest, cup holder, etc. are more considerately configured to improve the driver's operating comfort and convenience.
*The newly designed flip-up armrest box effectively increases the channel size.
5. Convenient maintenance
*Convenient maintenance is within reach.
*The diesel filter, oil filter, oil-water separator and air filter are designed for easy ground inspection and maintenance; the inspection and filling of engine oil, starter motor, battery and auxiliary water tank are extremely convenient. Product Parameters

Item	XE15U
Operating weight	1795kg
Bucket capacity	0.04m³
Rated power/speed	9.8kw/rpm
Maximum torque/speed	44.5/1500N.m
Travel speed(H/L)	3.9/2.1km/h
Swing speed	8.7r/min
Displacement	0.778L
Engine Model	D782
Gradeability	30°
Bucket digging force	16kN
Digging force of bucket arm	10kN

Detailed Photos

Packaging & Shipping

---
