Mountain Transporter 2t 3t 5t 8t

Product Description

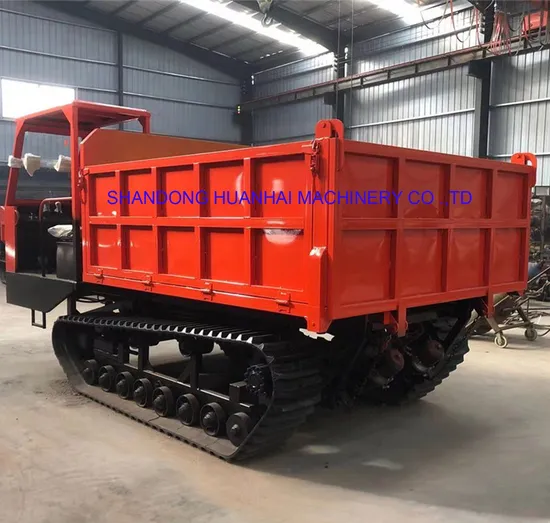

Crawler Dumper
	2 ton	3 ton	4 ton	8 ton
Total Machine Weigh	1000KG	1300KG	1500KG	2500KG
Engine power	19HP Diesel engines	30HP Diesel engines	57HP Diesel engines	105HP Diesel engines
Power	14KW	22KW	42KW	77KW
Diesel engine capacity	15L	20L	25L	30L
Hydraulic volume	3L	5L	5L	7L
Maximum load weight	2000KG	3000KG	4000KG	8000KG
Maximum grade	30	30	30	30
Track length	5000mm	5000mm	5000mm	5000mm
Track height	575mm	575mm	575mm	700mm
Crawler width	280mm	320mm	350mm	380mm
Size of the wagon	1450*1200*500mm	2200*1500*500mm	2200*1500*600mm	2500*1950*800mm
Machine size	3500*1600*1850mm	3550*1600*1850mm	3600*1650*1850mm	4400*2000*2300mm
Walking speed	0-10km/h	0-15km/h	0-20km/h	0-20km/h

Characters of crawler dumpers:
1. Good passing ability. The crawler-type chassis adopts a crawler belt with a large grounding area. In addition, there are many patterns and spurs on the crawler belt, and the grip ability is strong. Therefore, the passing ability is greatly enhanced, and it can be in the jungle, grassland, desert, snowfield, swamp, etc. Maneuverable in a complex road environment with excellent off-road performance. Compared with the wheeled chassis, the tracked chassis can be maneuvered in a variety of complex environments, with strong passing ability and wide application range.
2. High safely and reliability. The performance of the tracked chassis is better than that of the wheeled chassis. The crawler chassis does not suffer from the situation of wheeled vehicles leaking or puncture, which affects the continuation of the work, and has better safety and reliability.
3. Strong load-bearing capacity. The driving force is large (usually the driving force of each track can reach 35%-45% of the weight of the machine), and the connecting pressure is small (40-150 kPa). Due to its inherent characteristics, such as a large grounding area, the tracked chassis can afford heavy items compared to wheeled chassis.
4. Good climbing ability. crawler-type chassis generally has a large climbing ability (generally 50%-80%, the largest can reach 100%), and the turning radius is small, the flexibility is good, and the stability is high.

---
