Ce Approved 150kw Gas Generator with Biogas LNG CNG Methane LPG

Product Description

Product Details CE certificate 150KW Natural Gas Generator Dear customer, please check our 150KW Natural Gas Generator with CHP.

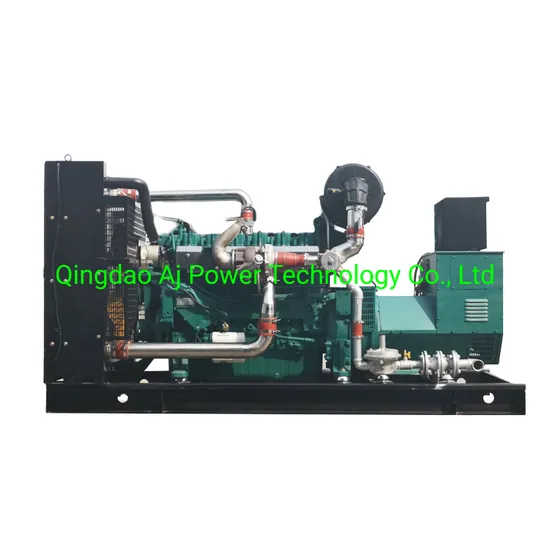

The picture allows you to see that our CE certificate 150KW Natural Gas Generator with CHP style is very novel.
CE certificate 150KW Natural Gas Generator with CHP Detailed technical parameters are attached below.

200KW Natural Gas Generator
Genset Model		YDNV-200
Rated Power(KW/KVA)		200/50
Rated Curent(A)		360
Dimension(mm)	L(mm)	2850
	W(mm)	1400
	H(mm)	1950
Weight(KG)		3200
	Model	YDT11
	Type	Four-stroke,Water-cooling,Direct Injection,V8-type
	Rated Power(Kw/KVA)	180/225(CH4 no less than 95%)
	Gas Consumption(m3/h)	66
	Rated Speed(rpm)	1500
	Cylinder NO.	8.v
	Bore*Stroke(mm)	128*42
	Cooling Method	water-cooled
	Oil Consumption(g/KW.H)	2
	Displacement(L)	14.618
	Starting mode	Electric
	Speed Governing Mode	DV 24V
Alternator	Brand	FARRAND
	Model	FLD150
	Rated Power(KW/KVA)	150/187
	Effciency	92.50%
	Voltage Regulation	±1
	Voltage Regulation	Brushles, Self Excitation
	Insulation Class	H
Control System	Model	Smartgen HGM6110
	Working Voltage	DC8.0V to DC35.0V, continuous
	Overall Dimensions	197 mm x 152 mm x 47mm
	Panel Cutout	186mm x 141mm
	Working Condition	Temperature: (-25~70)ºC; Humidity: (20~90)%
	Weight	0.56kg

Unlike a diesel generator set, the gas system of a gas generator set is very important.
And we use more high quality gas generator parts for you as following parts:
Mix gas and air for combustion we use USA Brand IMPCO.
E-Throttle is German Brand BOSCH.
Regulator is Italian Brand MADAS
Spark plug is Chinese famous brand TORCH
Water temperature Sensor also is BOSCH
And other high quality parts.
Yangdong 10-30kw Natural gas generator

Gas Genset #	Rated Power(Kw/Kva)	Gas Engine #	Dimension(mm)	Weight(Kg)
YDNYD-10	10/12.5	YD4M1D	1450*700*1100	510
YDNYD-15	15/18.75	YD4B1D	1700*720*1250	620
YDNYD-20	20/25	YD4102D	1750*740*1250	650
YDNYD-25	25/31.25	YD4102D	1750*740*1250	680
YDNYD-30	30/37.5	YD4102D	1750*740*1250	700

Lovol 30-100kw Natural gas generator

Gas Genset #	Rated Power(Kw/Kva)	Gas Engine #	Dimension(mm)	Weight(Kg)
YDNL-30	30/37.5	YND1004	1850*800*1430	950
YDNL-40	40/50	YDN1006	2150*800*1430	1100
YDNL-50	50/62.5	YDN1006	2150*800*1430	1150
YDNL-60	60/75	YDN1006ZD	2150*800*1430	1200
YDNL-80	80/100	YDN1006ZD	2150*800*1430	1250
YDNL-100	100/125	YDN1006ZD	2200*800*1430	1300

VMAN 150-500KW Natural gas generator

Gas Genset #	Rated Power(Kw/Kva)	Gas Engine #	Dimension(mm)	Weight(Kg)
YDNV-150	150/187.5	DT11	2700*1500*1800	2800
YDNV-200	200/250	DT15	2850*1500*1950	3100
YDNV-300	300/375	DT22	3420*1700*2100	3800
YDNV-400	400/500	DT30	4300*2100*2500	4500
YDNV-500	500/625	DT30-1	4500*2100*2500	5000

Requirments for natural gas 1.Methane should be at least 55%
2.The natural gas temperature should be between 0-60 ºC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
QC
In order to ensure that 200KW Natural Gas Generator is 100% qualified, our factory has strict quality inspection process.
1).Strict inspection of all components
2).Strict inspection of AC Alternator, including AVR, copper wire, insulating varnish, silicon steel sheet.
3).Check gas engines, including cylinder heads, cylinders, superchargers, exhaust manifolds, etc.
4).Check gas engine electronic control circuit
5).Check the heat sink, radiator and radiator lines.
6).Check the ECU, the brain of the gas generator set.
7).Check the control module to ensure that the generator control system is operating properly.
Product Packing
For open type, packing with plywood case; For silent type, packing with bubble and stretch film.

Case show
The sources of biogas are very wide: landfill biogas, kitchen waste biogas, sewage treatment plant biogas, food plant biogas, alcohol plant biogas, farm biogas, straw to produce biogas.
Certifications

Our Service Pre-Sales Service * Inquiry and consulting support.
* Sample testing support.
* View our Factory. After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Company Weifang Match Power Co., Ltd Weifang Match Power Co., Ltd was founded in 2017, it specializing in producting and selling the Marine Generators, Marine Engine, OceanSwitches as well the Industrial Generators, Mobile Lighthouses and Diesel Engine Parts.
The company is located in the eastern of Shandong Province. There's only 160km distance to Qingdao, about 2 hours drive.
After the previous accumulate of experience, Match Power has established business relationship with hundreds of domestic and international customers now, such as Russia, Saudi Arabia, the united Arab emirates, Cyprus, India, Sri Lanka, the Philippines. And we aim to be the leading supplier of electric power solutions

---
