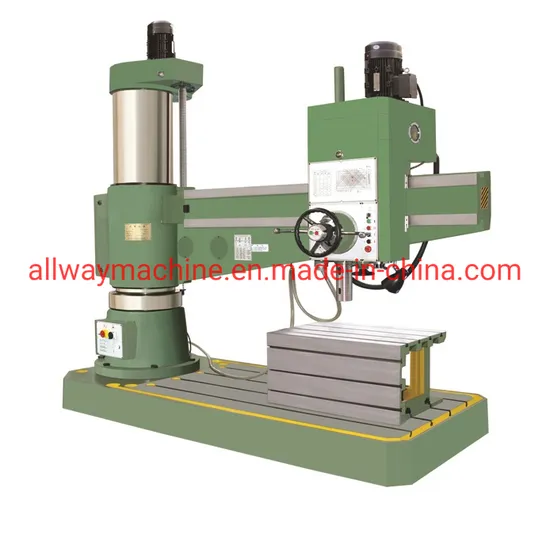

Hydraulic Radial Drilling Tapping Machine

US$15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3080X20A
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Hydraulic
Drilling,Tapping
Transport Package
W/Case
Specification
80
Trademark
Allway
Origin
China
HS Code
84592900
Production Capacity
1000PCS/Year

Product Description

Configuration features:
Hydraulic clamping Hydraulic variable speed
Hydraulic pre-selection Mechanical and electrical double insurance
Product main technical specifications:
specifications Units Z3080*20A Z3080*25A
Max. drilling diameter mm 80 80
Distance from spindle nose to table surface mm 350-1570 350-1570
Distance between spindle axis and column surface mm 510-2000 480-2500
Spindle travel mm 400 400
Spindle taper MT 6 6
Spindle speeds range (r.p.m) 16-1600 16-1600
Spindle speed step 16 16
Spindle feeding range (r.p.m) 0.04-3.20 0.04-3.20
Spindle feeding step 16 16
Rocker rotary angle +/-90° +/-90°
Main motor power kw 7.5 7.5
Movement motor power kw 1.5 1.5
N/W kg 7000 9500
Overall dimensions(L*W*H) mm 2980*1250*3300 3500*1450*3300
