Q1335 Engine Metal Lathe Pipe Threading Cutting Lathe Machine

Product Description

Product Overview
Product Description
-This series of pipe thread lathes is mainly used to process internal and external threads of pipes, and they can also be used as an ordinary lathe to process the outer circle, inner hole, and end face of shaft, pipe, and disk parts.
-This machine tool is widely used in the petroleum industry, which can process and repair parts such as drill pipes, joints, and casings. It is also used for the thread processing of various pipes and drill pipes in industries such as coal, chemical engineering, water conservancy, and geological exploration.
Standard configuration :
1-With 3 jaws double manual chuck (780mm) ;
2-With 4 station manual tool post and manual tailstock ;
3-With Whole casting bed ;
4-Voltage 380V/220V/415V ,3 Phase;
Optional configuration :
1-Steady rest ,follow rest , back steady rest;
2--Digital readout ;
3- Processing length: 2000mm,3000mm,4000mm....

Product Parameters

Item	UNIT	Q1335
Max dia.swing over bed	mm	1000
Max dia.swing over cross slide	mm	610
Max.length of work-piece	mm	1500
Maximum machining length	mm	1250
Pipe threading range	mm	Φ150-350
Width of bed	mm	755
Spindle bore	mm	360
Spindle center height	mm	500
Power of spindle motor	KW	22
Spindle speed	RPM	VF2 STEPS 30-130/65-260
Z axis feed grade/range	Mm/r	32/0.1-1.5
X axis feed grade/range	Mm/r	32/0.05-0.75
Carriage rapid traverse speed	mm/min	3740
Cross slide rapid traverse speed	mm/min	1870
Traverse of Cross slide	mm	520
Max.traverse of turret	mm	300
Tailstock quill travel	mm	300
Tailstock quill Dia/taper		160mm /Morse NO.6

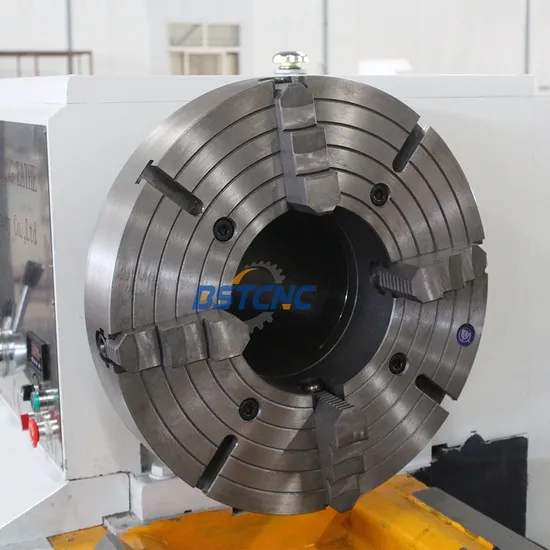

Chuck		Φ780 4-jaw electric chuck
Overall dimensions(L*W*H)	mm	4700x2150x1650
Machine weight	T	12
