Product Details
Product Description
Product Description

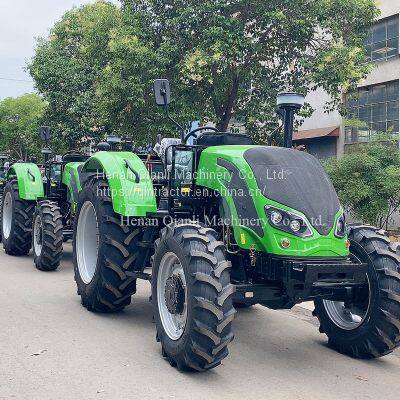

Cheap Price 50hp Mini Garden Tractor Small FarmTractor In ThailandThis QA Series 50 HP Wheeled Tractor suitable for market demand at home and abroad, F8+R8 shuttle shift, enhanced chassis.
Products Parameters
50HP
| Model | QLN-504 |
|
| Engine | Rated power(kw) | 36.8 |
|
| Type | Vertical four cylinder, direct injection, four stroke, water-cooled |
|
| Rotation speed(r/min) | 2400 |
|
| Dimension | Wheel drive | 4WD |
|
| Minimum | 1625 |
|
| using weight (kg) |
|
| Overall dimension(mm) | 3660*1585*1530(to steering wheel) |
|
| 3660*1585*2150(to muffler) |
|
| Wheel tread(mm) | Front wheel | 1230 |
|
| Rear wheel | 1110～1400 |
|
| Wheelbase(mm) | 1820 |
|
| Minimum ground clearance(mm) | 280（lower edge of front drive axle） |
|
| Gearbox | 4*（2+1）shuttle shift |
|
| Tire | Front tire | 7.50-16 |
|
| Rear tire | 11.2-28 |
|
| Steering type | Hydraulic power steering |
|
| Working device | PTO shaft speed (r/min) | 540/720 or 540/1000 |
|
| Max lifting force(KN) | 11.3 |
|
| Suspension type | CategoryⅠ3-point linkage |
|
About us
Henan Qianli Machinery Co., Ltd is a professional farm tractor manufacturer in china ever since 1988. We have exported our tractor to many countries, such as Romania, Turkey, Australia, Zimbabwe, Congo etc.Our factory covers an area of 120,000 square meters and has around 1300 staffs.We have a complete domestic tractor product line,walking 10-18 hp, farm tractor 25-220 hp,harvester and matched agricultural implements.
