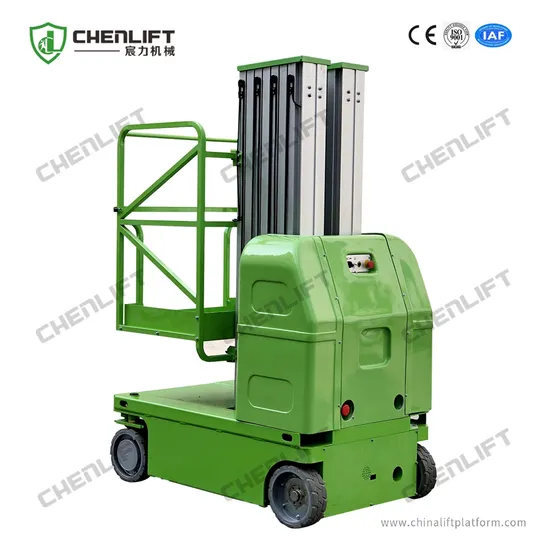

9m Double Mast Self-Propelled Aluminum Alloy Lift Platform

Product Description

9m Double Mast Self-Propelled Aluminum Alloy Lift Platform
Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.
Specification:
Swivel Turning Type

Model	MG600-1	MG750-1	MG750-2	MG900-2
Lift Capacity	125Kg	125Kg	200Kg	150Kg
Platform Height Max	6m	7.5m	7.5m	9m
Stowed Length	1.36m	1.36m	1.5m	1.5m
Stowed Width	0.79m	0.79m	1.0m	1.0m
Stowed Height	1.98m	1.98m	1.99m	1.99m
Platform Size	0.78*0.70m	0.78*0.70m	1.00m*0.70m	1.00m*0.70m
Ground Clearance	0.05m	0.05m	0.05m	0.05m
Wheelbase	1.15m	1.15m	1.28m	1.28m
Gradeability	25%	25%	25%	25%
Maximum Working Slope	1.5°	1.5°	1.5°	1.5°
Driving Wheel	0.23*0.08m	0.23*0.08m	0.25*0.08m	0.25*0.08m
Front Tire	8in	8in	8in	8in
Driving Motor	0.4Kw	0.4Kw	0.5Kw	0.5Kw
Lifting Motor	2Kw	2Kw	2Kw	2Kw
Power Source	2*12V/120Ah	2*12V/120Ah	2*12V/120Ah	2*12V/120Ah
Charger	24V/12A	24V/12A	24V/12A	24V/12A
Weight	850Kg	880Kg	1100Kg	1250Kg

Hydraulic Turning Type

Model	MG600-1S	MG750-1S	MG750-2S	MG900-2S
Lift Capacity	125Kg	125Kg	200Kg	150Kg
Platform Height Max	6m	7.5m	7.5m	9m
Stowed Length	1.44m	1.44m	1.55m	1.55m
Stowed Width	0.82m	0.82m	1.0m	1.0m
Stowed Height	2.09m	2.09m	2.09m	2.09m
Platform Size	0.78*0.70m	0.78*0.70m	1.00m*0.70m	1.00m*0.70m
Ground Clearance	0.05m	0.05m	0.05m	0.05m
Wheelbase	1.15m	1.15m	1.28m	1.28m
Gradeability	25%	25%	25%	25%
Maximum Working Slope	1.5°	1.5°	1.5°	1.5°
Driving Wheel	0.23*0.08m	0.23*0.08m	0.305*0.1m	0.305*0.1m
Front Tire	8in	8in	8in	8in
Driving Motor	0.8Kw	0.8Kw	0.8Kw	0.8Kw
Lifting Motor	2Kw	2Kw	2Kw	2Kw
Power Source	2*12V/105Ah	2*12V/105Ah	2*12V/105Ah	2*12V/105Ah
Charger	24V/15A	24V/15A	24V/15A	24V/15A
Weight	1100Kg	1200Kg	1350Kg	1500Kg

Details:
Swivel Turning Type
Hydraulic Turning Type
Standard Configuration for Self-Propelled Economical Vertical Lift
1. Proportional controls
2. DC power supply
3. Drivable at full height
4. Beacon
5. Non marking tyre
6. 2WD
7. Automatic braking system
8. Anti burst valve on cylinder
9. Emergency stop button
10. Auxiliary lowering
11. On board Diagnostic system
12. Tilt sensor with alarm
13. Forklift pockets
14. Charger protection
15. All motion alarm
16. Horn
17. Double wheel brake
18. Hydraulic braking release
19. Anti-dust cover on the mast
20. Powder coating painting

Optional Configuration for Self-Propelled Economical Vertical Lift
1. AC power to platform
2. Overload sensor with alarm
3. Platform working light
4. Air tube to the platform
5. Platform extension
6. Self -lock gate on platform(Hinge type top open door)
7. Hour meter
8. Machine Body cover
9. Wireless tracking
Factory Equipment
Client & Factory
Client &Exhibition
Company Profile:
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
We are also the CE certified manufacture and joined IPAF member.
Our Certificates:
Other products
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
Communication with Customers:
A: What is the difference from scissor lift and aluminum aerial work platform?
B: The main difference is from the structure and the material.
The scissor lift is in scissor structure with steel material.
The aerial work platform is in mast structure with aluminum material.
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.
A: How long is your quality guarantee period?
B: We have one year warranty.

---
