Manufacture 100kg to 1000kg Mini Wire Rope Electric Hoist Winch PA100 100 to 1000kg Mini Electric Hoist Price

Product Description

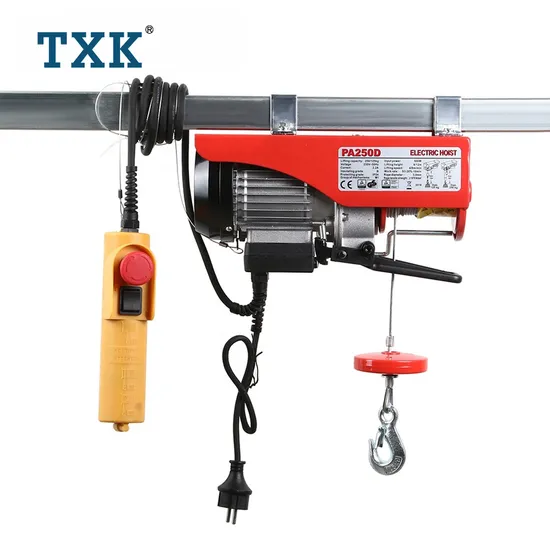

Lifting Machine 0.25 Ton Mini Electric Hoist with Motorized Trolley

Model	Method of use	Rated Voltage	Input power	Rated Lifting Capacity	Lifting Height	Lifting Speed	Qty/Ctn	Packing Size	N.W./GW
Pa200	Single hook	220V/50HZ	510W	100kg	12m	10m/min	2	46*36*16	22/24
	Double hook			200kg	6m	5m/min
Pa300	Single hook	220V/50HZ	600W	150kg	12m	10m/min	2	46*36*16	24/26
	Double hook			300kg	6m	5m/min
Pa400	Single hook	220V/50HZ	850W	200kg	12m	10m/min	2	52*41*17	33/35
	Double hook			400kg	6m	5m/min
Pa500	Single hook	220V/50HZ	1000W	250kg	12m	10m/min	2	52*41*17	34/36
	Double hook			500kg	6m	5m/min
Pa600	Single hook	220V/50HZ	1150W	300kg	12m	10m/min	2	52*41*17	35/37
	Double hook			600kg	6m	5m/min
Pa800	Single hook	220V/50HZ	1450W	400kg	12m	10m/min	2	52*44*17	37/39
	Double hook			800kg	6m	5m/min
Pa1000	Single hook	220V/50HZ	1850W	500kg	12m	10m/min	1	53*18*35	30/32
	Double hook			1000kg	6m	5m/min
Pa1200	Single hook	220V/50HZ	2100W	600kg	12m	10m/min	1	53*18*35	31.42/33.5
	Double hook			1200kg	6m	5m/min

Details of Electric Chain Hoists:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Advatages: Solid and light
Fast release heat
Continuous use
Enclosed structure
Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M5 /FEM: 2M
Insulation grade: F
8. Protection class (hoist and push button): IP54
9. Powder supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB.
Company Profile
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience and hard work.Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico, Peru, Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions.
production line
FAQ
1. About after-sale service:
We have engineers to fix any problem for KIXIO hoists sold overseas, and we supply free spare parts within warranty.

2. About quality:
Before packing, all the hoists will be inspected carefully. And we take detailed pictures and make records for each single product. With our serial no. you will track the details about the products.

3.What is the range capacity of your hoists?
From 0.25 ton to 50 ton.

4. About price:
Price is negotiable with large order quantities.

5. About warranty:
We offer 1 year warranty for electric parts, and 2 years for mechanical parts.

6. About samples:
Available.

7. OEM
Available.

8.Do you have any hoists which suit for low warehouse or building?
Yes, low-headroom electric hoist must be your good choice.

---
