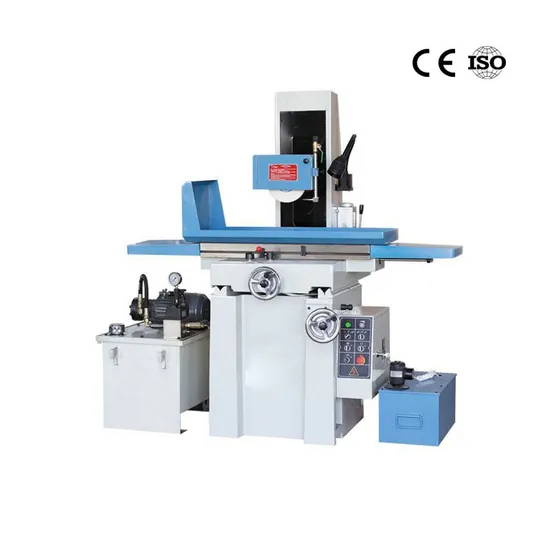

| Specifications | | MY1022 |
| Table Size (LxW) | | 540x250mm |
| Max movement of working table (LxW) | | 560x260mm |
| T-Slot number×width | | 1x14mm |
| Max distance from spindle center to table surface | | 450mm |
| Wheel size (Outer diameter x Width x Inner diameter) | | 200x20x31.75mm |
| Wheel speed | 50HZ | 2850r/min |
| 60HZ | 3360r/min |
| Longitudinal speed of working table | 3-20m/min |
| Vertical(up and down) feed on handwheel | Per revolution | 1.25mm |
| Per graduation | 0.01mm |
| Cross feed(front and rear) on handwheel | Per revolution | 4mm |
| Per graduation | 0.02mm |
| Spindle motor | | 1.5KW |
| Coolant pump motor | 40W |
| Hydraulic motor | | 1.5KW |
| Working pressure | 3Mpa |
| Oil tank capacity | 80L |
| Max flow | | 18L/min |
| The parallelism of working surface to base level | 300:0.005mm |
| Surface roughness | Ra0.32μm |
| N.W./G.W. | | 950/1050kg |
| Packing size | | 163x129x194cm |
