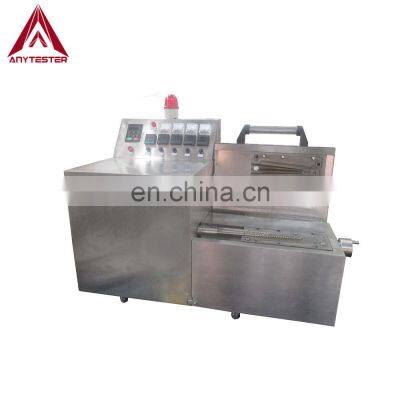

Product DescriptionAT395A Lab Openable Mini Conical Two-Screw ExtruderApplication:AT395A Lab Openable Mini Conical Two-screw Extruder is a minimum instrument for mixing new material designed on the international advanced technology. It is suitable for developing new products of plastic polymer, biopolymer, inorganic material, medicines, foods and fine chemicals. For new material or recipe, it is very hard to test or evaluate because no enough material or expensive additives; this machine commendably solves this problem.SpecificationModelAT395AScrew diameter10/24mm(conical)Screw effective length330mmMain motor power0.55Kw (frequency control)Screw total torsion60N.mScrew speed0~57r/minTemperature controlling range0~400℃Heat power1.2kWHeat section1Cool methodNatural coolingMaterial of barrel and screw38CrMoAlADepth of nitride0.5~0.7mmSurface hardnessHV850~930Extruding methodDirect extruding or circular extrudingMax. processing capacity15mlMini. Material for single test50gExtruding speed≥1.0kg/h (raw material at direct extruding)Power supplyAC380V 50Hz, three-phaseDimensions≤800×500×500Details and Features★ Key part of this machine is an openable no-material-leakage double hollow conical mixing cavities with two dischargeable conical mixing screws;★ Two hollow conical mixing cavities are processed by hardening and tempering before being manufactured; the metallographic characteristic and hardness of barrel keep their initial geometric structure and screws and mixing cavities are processed by fine polishing, nitriding and anti-corrosion, ensuring the core parts has enough stability and achieving repeatable data in the service life;★ Main driving adopts digit-settable frequency controlling to select appropriate rotational speed according to the material’s characteristics;★ Be able to measure the axial pressure and die pressure at material output port and control the extruding flow, so it can output rod, sheet, pipe, granule, film and filament with different optional dies;★ Working temperature is controlled on four separated sections to get a specific temperature gradient during processing or direct controlled by thermocouple;★ Stay time of material in barrel can be changed by backflow of melt, achieving the purpose of long-time mixing;★ Mixing, dispersing and shearing of material can be set by controlling the rotational speed and axial force;★ Space between mixing screws are adjustable.Our CompanyPacking&DeliveryPacking Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protectthe equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContecting UsTina ZhangWebsiteMobile Phone+8613866784390WhatsApp+8613866784390Skypesales03@anytester.comWechat+8613866784390
>>
