Beibu Grain Cleaner Capacity in 30t/H Maize Wheat Cleaning Machine

Product Description

Grain Cleaner Capacity in 30t/H Maize Wheat Cleaning Machine
Product Description

•This machine is This machine is an intelligent machine, which can realize automatic adjustment through PLC control.
•The raw grain go to machine by elevator,first go through the air screen cleaner which will remove the dust and light impurities ;
•Then the grain will go to the vibration grader which can remove the big and small impurities;
• After that , the grain go thought another air screen again . to remove the dust and light impurities second times .
•At the end , the grain will go to the gravity table which can remove the small sticks,lighted,moldy and insected grain;
• This machine is covered buy the dust cover , to insure the environment of the warehouse . the dust cover can clean itself when the machine stop work .
Product advantages
•High output, based on corn and wheat, the cleaning efficiency can reach 35 tons/hour
•Intelligent adjustment, one-click switching of equipment operating parameters for different materials, suitable for different grain seeds
•The environmental protection effect is good, the equipment adopts a fully enclosed structure design, and there is basically no spilled dust
•High purity, ultra-large specific gravity table and screen, prolong the cleaning time of grain seeds and increase the efficiency of removing impurities.

Machine Structure


Cleaning Result
Product Parameters

Model	Z310 PLC automation cleaning machine
Sieve Size	1500mmx2000mm
Gravity table size	2100mmX2300mm
Power(kw)	36kw
Capacity(t/h)	13-15t/h based on sesame 20-25t/h based on soybean
Weight(kg)	5900kg (without elevator)
Overall Size L×W×H(mm)	4600*3200*4400mm (without elevator)
Voltage	380V, 50HZ, three phases

Detailed Photos

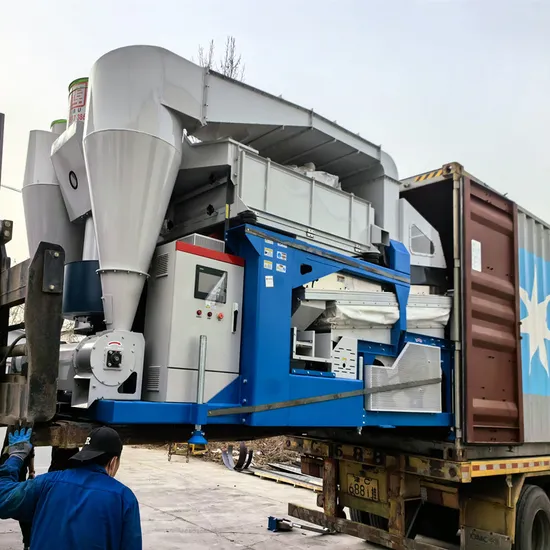

Machine Loading Picture
Installation Warehouse

---
