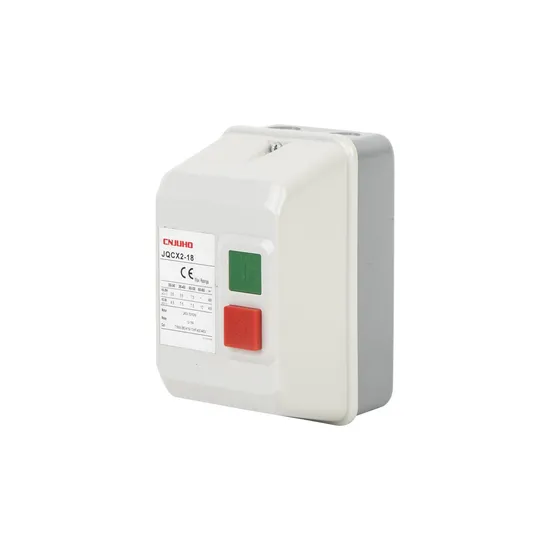

New Type Dol Magnetic Starter with Metal Base From 18A to 32A

US$6.90 100 Pieces (MOQ)

Basic Info.

Model NO.

LE1-N

Phase

Main Circuit Rating Voltage

380V

Main Circuit Rating Current

100A

Type

Ac Contactors

Starter Type

Thermal Overload

Connection

Thermal Relay

Component Type

Dol

Case Material

Plastic+Metal

Cover Material

Plastic

Base Material

Metal

Standard

IEC

Certificate

Waranty

18 Month

Inside Part

Relay+Contactor

Transport Package

by Cartons

Specification

silver contact point

Trademark

CNJUHO

Origin

Zhejiang

HS Code

8536300000

Production Capacity

1000000

Packaging & Delivery

Package Size

9.00cm * 10.00cm * 15.00cm

Package Gross Weight

1.000kg

Product Description

1.Application:
LE1 series magnetic starter mainly be applicable to the AC circuits of 50Hz/60Hz under rated voltage up to 380V and rated current up to 95A. It is used for controlling the 3-phase squirrel-case type induction motor to operate starting, stop, forward or reverse. And it can protect the motor from overload and interruption.
2.Main specification:

Type	Rated Current(A)	Maximum Power AC3 duty (KW)						SuitableThermal Relay(A)
Type	Rated Current(A)	220V 230V	380V 400V	415V	440V	500V	660V 690V	SuitableThermal Relay(A)
QCX2-9	9	2.2	4	4	4	5.5	5.5	JR28 D1312 JR28 D1314
QCX2-12	12	3	5.5	5.5	5.5	7.5	7.5	JR28 D1316
QCX2-18	18	4	7.5	9	9	10	10	JR28 D1321
QCX2-25	25	5.5	11	11	11	15	15	JR28 D1322 JR28 D2353
QCX2-32	32	7.5	15	15	15	18.5	18.5	JR28 D2355
QCX2-40	40	11	18.5	22	22	22	30	JR28 D3353 JR28 D3355
QCX2-50	50	15	22	25	30	30	33	JR28 D3357 JR28 D3359
QCX2-65	65	18.5	30	37	37	37	37	JR28 D3361
QCX2-80	80	22	37	45	45	55	45	JR28 D3363 JR28 D3365
QCX2-95	95	25	45	45	45	55	45	JR28 D3365

3.We commit:
4.Office and working department:
5.Certificate:
6.Shipping
