Product Description
Product Description

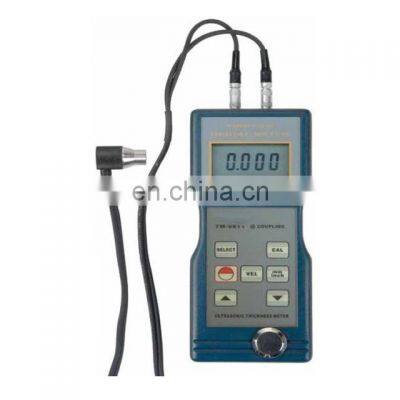

Product DescriptionApplicationUltrasonic thickness meter's Applicationused for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.Detailed Images1.Measuring range (metric/imperial): 1.5-200mm,0.06-8inch 2.Operating principle: ULTRASONIC 3.Materials measured: Any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC ,gray cast iron, nodular cast iron and other materials.4.Lower limit steel pipes: Diameter15x2.0mm, Diameter 20x3.0mm determined by the transducer 5.Calibration block: included 6.Resolution: 0.1mm7.Accuracy: ±(0.5%n+0.1)8. Power supply: 4x1.5vaa(UM-3) battery9. Battery indicator: low battery indicator10.Operating conditions:≤85%RH11.Dimensions:160x68x32mm 12. Weight:208g(not including battery)AccessoriesOptional Accessories5M Diameter 12mm high Temperature probeMeasuring range (steel):1.0~ 225.0mm (normal temperature) Measuring range (steel):4.0~100.0mm (high temperature)6M Diameter 6mm thin Material probeMeasuring range (steel) :1.0~50.0mmStandard deliveryMain unit15M Diameter 8 transducer1Instruction manual1Carrying caseB01Related ProductsTM-8811 Ultrasonic Thickness Gauge CM-8828 car paint coating thickness gaugeTM-8812 Ultrasonic Thickness Gauge Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc. Trade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.Contact UsNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office at TEL:86-411-39685079Whatsapp:+86 15998577470Skype:tmeasurement04web:/
>>
