2025 Hualong Machinery 3D Scanner for Engraving Model Advanced Handheld Portable Industrial Human Figure Laser

Product Description

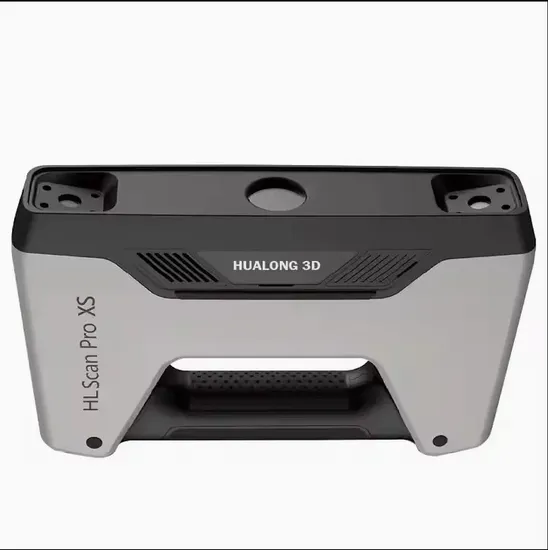

3D Scanner HLScan Pro XS multi-functional handheld 3D scanner, simple and portable, equipped with HLScan Pro V2 series strong core, focus on handheld fine digital scanning. The guided operation process is more in line with the habits of users in the engraving industry in the process. While obtaining the engraving details in high fidelity, it maximizes the scanning efficiency, takes into account the details and efficiency in one, better fits the industry needs of users.
Features: 1) Rich detail acquisition ability with the minimum point distance of 0.2mm. The rich data details calmly cope with fine engraving. 2) Smooth scanning experience - Scanning speed of up to 3,000,000 points/second, whether for a small craft decoration, or a large sculpture, it can quickly and accurately scan and process to obtain complete data, improve work efficiency.
3) Easy to use with user-friendly software. The scanning process is clearly visible in the computer, so that the scanning operation can be performed quickly even for novices.
4) Light portable equipment and flexible operation, meet the engraving user's complex use scenario.

HLScan Pro XS 3D Scanner - Duplicate engraving strokes · Reproduce fine details

TECHNICAL DATA
Scan Mode	Hand-held fine scanning	Large size fast scan
Scan Accuracy	0.045 mm	0.1 mm
Volumetic Accuracy	0.045 mm + 0.3 mm/m	0.1 mm + 0.3 mm/m
Point Distance	0.2 mm - 3 mm	0.25 mm - 3 mm
Scan Speed	3,000,000 points/s, 10 FPS	1,500,000 points/s, 30 FPS
Single Scan Range	180 mm×160 mm -- 300 mm×220 mm
Standard Working Distance	510 mm
Working Distance	410 mm - 610 mm
Light Source	White LED (safe for eyes)
Data concatenation mode	Mark point stitching, feature stitching, texture stitching, hybrid stitching (mark point and feature)
Color scanning	Support ( with optional texture module)
Outdoor Operation	Set up the shelter or cover to avoid direct sunlight
Special Object Handling	For the black, transparent or reflective objects, please spray powder before scanning
Output Format	.obj,.stl,.asc,.ply,.p3,.3mf
Mode of Data Transmission	USB 3.0
Weight	1.25 kg (includingthe USB 3.0 cable)
Input Voltage/Current	DC:12 V,5.0 A
Supported OS	Win 10 / Win 11,64 bit
Recommended Configuration	Graphics card: NVIDIA GTX/RTX series, RTX 2060 and above; Video memory: ≥6 GB; Processor: IntelI7-11700 or above; Memory: ≥64 GB

FAQ
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received for one set. For the case of large amount and gent can be negotiated.
Q:Can I have it customization?
A:Of course you can. Please tell us your needs and we will offer you the satisfied quotation.
Q:What's the payment terms you support?
A:We support LC, T/T, D/P, PayPal, Western Union, Small-amount payment.
Q:Can you send technicians to assist with installationand operation training?
A:Yes. We can.
Q:Do you have your own factory?
A:Yes. We can show you by video call.

---
