Product Details
Product Description
Product Description
Basic Info.
Model NO.
HP- DTB300
Customized
Customized
Certification
PTI, CSC, ABS, CE, ISO
Self Propelled
Yes
Type
Cargo Barge
Condition
New
Length (Feet)
<100′
Certified Models
MP300dtb
Length
21m
Service
Free Assembly, Training, Testing,on-Site Debugging
Hull Specification
Steel
Device Configuration
2 Set Marine Engine, 2 Sets Propeller
Operattion
Hydraulic PLC Control System
Sailng Speed
15km/H
Fuselage Weight
Other
Horsepower
2*150HP or Other
Color
Any Color Ok
Transport Package
Container or in Bulk
Specification
21M
Trademark
HENGPENG
Origin
Shandong, China
HS Code
89051000
Production Capacity
500 Sets/Year
Product Description
Introduction

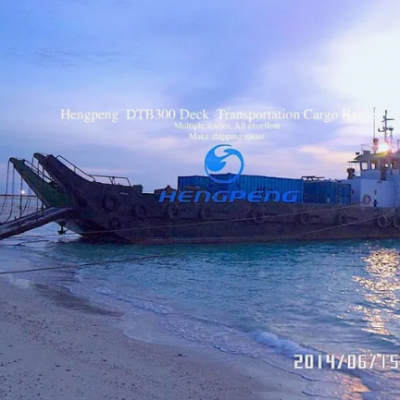

Hengpeng HP- DTB300 Self-Propelled Deck Transportation Cargo Barge
Landing Barge / Logistics Transportation
Modular Pontoon design with Dual power 6m Front Ramp Humanized design Full hydraulic drive applicable to many scenarios transportation, all excellent. On-site debugging, customized production on demand
* This 300 ton self-propelled deck barge with front ramp customized by Maldives customer, the wheeled equipment can be directly driven up and down the deck, loaded from Shanghai port to bulk carrier, shipped to Malé port, Maldives and assembled. This equipment is a steel split splicing & assembly transportation barge, the whole set of equipment can be easily disassembled and transported by truck, the weight of each piece,the length and width are suitable for the requirements of road transportation. Road transport requires 4 semi-trailers with total weight about 120 tons. After the trucks are transported to the work site, they are quickly assembled and put into infrastructure construction in the Maldives.
* This equipment is customized according to customer requirements and local conditions without fixed waterways, to meet the water depth of no more than 2 m, draft depth of 2 m. It can be used as a landing tool for sand, gravel, vehicles and personnel in shallow waters, and can also be used for cargo connection operations (Barge Tranship)in shallow seas/ offshore, such as transportation vehicles, personnel, bulk cargo, ton bags, containers, etc. The specific tonnage can be customized according to customer requirements.
* This equipment has fast speed, large carrying capacity, stable operation, and all mechanized operation, which is an ideal water transportation tool.
Product Description
Equipment features - Six Reasons Why
Chose Hengpeng HP- DTB300 Self-Propelled Deck Transportation Cargo Barge
Load capacity of 300 ton, cargo deck area of 150 square meters,
1 set of new high-efficiency hydraulic control operation system,
all-welded solid steel structure, positioning anchor device.
2 set diesel engine power systems,
2 propeller machine propulsion systems,
Modular design, quick assembly on the jobsite,
Assist in all-scene transportation,all excellent. There are also GPS navigation and safety equipment to protect everything.
Fast speed, large carrying capacity, stable transportation, easy operation, flexible steering, convenient disassembly and assembly.
|
300 ton
Large load, large platform
Designed and built to meet customer's needs, carry large loads in water transportation.
Deck has a large enough area to carry a large number of cargo, containers, equipment or other materials, capable of carrying 300 tons, equipment such as automobiles, equipment, excavators, bulldozers | Power system, highly efficient
2 sets of marine engines & 2 sets of propellers, to ensure adequate propulsion in all sea conditions.
The power system chosen to take into account fuel efficiency and environmental requirements, but also to meet the needs of speed and range. | Hydraulic driven
PLC-Controlled
Hydraulic Steering System,
all work can be done easily in an enclosed cab.
High reliability,
High-efficiency.
|
Navigation and safety equipment
Advanced navigation systems,
including GPS
ensure the accuracy and safety of navigation.
Life-saving equipment and
fire-fighting equipment
ensure the safety of personnel.
| Adaptable design
in a variety of water environments, rivers, canals, inland waterways.
Shallow water ability and navigational stability, adapt changes in water levels and complex watercourse conditions.
6m front ramp, support wheeled equipment directly diven on/off (roll-on/roll-off), making it easier to load & unload .
|
Hull structure
All-welded steel construction, high strength and durability.
Hull alignment and weight distribution, ensure stability during sailing.
The internal layout of the hull is reasonable, including cargo holds, personnel living quarters and mechanical equipment areas , meet the needs of personnel and materials.
|
Comprehensive Performance,
Unlimited Transportation
Wide Range of Operating Scenarios
|
Specification
Technical ParametersDescriptionRemark
| Modular Pontoon Deck Transport Barge |
|
|
| Brand | HENGPENG |
|
| Total Length | 21M | Modular Pontoon design support road transportation, length and width is suitable for he requirements of road transportation |
| Side Pontoon Length | 20M |
| Width | 10M |
| Depth | 1.6M |
|
| Connection Method | Flange | 6 piece by strong connection method |
| Front Ramp | 6M | Easier to load equipment |
| Max PayLoad | 300Ton |
|
| Operation System | 1 set of Humanized Hydraulic PLC Control System | Smooth operation, Worked sooothly |
| Power System |
|
|
| Engine | 2 Set Weichai | CCS approved |
| Propeller | 2 Set |
|
| GPS System | 1 set Equipped |
|
| Living Area design | Bedroom, Pilot Cabin, Kitchen ,Bathroom, Window, Door |
|
|
|
|
| Specification |
|
|
| Body Type | Modular Pontoon Self-Propelled Deck Barge |
|
| Application Scenarios | Logistics, agriculture,Industrial,Use of daily material necessities transport |
|
| Sailng Speed | 15km/h |
|
| Application Transport | Cars, Heavy Equipment, Excavator, Staff, Cargo |
|
| Warranty | 1 -5 Year |
|
>>
