China Factory Price CNC 6-Side Drilling Machine with Drill Packs Furniture Making

Product Description

Stroke of each axis Max. positioning speed	X axis	5000mm & 140m/min
	Y axis	1200mm & 80m/min
	Z axis	90mm & 30m/min
	U axis	1200mm & 60m/min
	V axis	1200mm & 80m/min
	W axis	60mm & 30m/min
	A axis	5000mm & 140m/min
	Y2 axis	1500mm & 80m/min
	Z2 axis	90mm & 30m/min
Working range	Max. board width(vertical)	1200mm
	Min. board width(vertical)	35mm
	Max. board length(vertical)	5000mm
	Min. board length(vertical)	70mm
	Max. board thickness(vertical)	50mm
	Dust extracting quantity	7300m³/h
Boring Combination	Vertical drill bits	Bottom:9 pcs Upper:2*12 pcs
	Horizontal drill bits	2*8 pcs
	Drill bits rotation speed	3400rmp(r/min)
	Motor power of drill pack	3.5Kw *2
Air Cooling Spindle	Spindle Type	Er25
	Collet	1/2 Inch
	Spindle Speed	18000rpm(r/min)
	Working table height	950mm
	Saw blade (optional)	1pcs
	Motor power	25.85Kw
	Voltage	380V/50Hz
	Working pressure	0.7-0.8Mpa
	Dimension	5200x2840x2200mm
	Weight	Approx.. 3900kg

Rigid body frame
Main structure is solid welded, and done the tempering treatment, to ensure the stability of the machine, without the deformation.

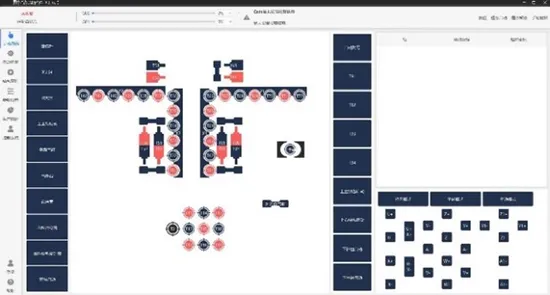

CNC Control System
Adopts Industrial control system with Windows system, the system can import the DXF format date of holes, which will be much more convenient.
Meanwhile the operator can do the bar code scanning to get the processing code.
CC Brand drill pack
Adopts CC brand drill pack, which has been tested by the market, with high working precision.
Configuration: upper 12V*2+ 8H*2
Lower: 9V
Saw blade as optional.
Horizontal drill bits
Adopts the nearest processing principle, can do the continuous drilling process.
Vertical drill bits
In order to avoid the edge breaking, the system will appoint the relevant upper and bottom bits to do the through drilling. Without reversing board, can ensure the working efficiency.
Pneumatic board clamper
Adopts double clamper structure, the clamper will do the feeding and positioning automatically according to the NC program.
Side alignment device
Equip with automatic high precision side align device, which can do the positioning according to the different board width.
Bar code scanner
Considering to cooperate with the furniture design software, the machine comes with Bar Code scanner, can achieve the quick NC program importing.
Automatic pressing device
The pressing device will work automatically according to the NC program, to increase the drilling accuracy.
Board detecting device
Equip with board detecting device, which will detect the boards size automatically, and reduce the tolerance which is caused by manual checking.
Air floating table
The feeding table adopts air floating structure, which can reduce the board surface damages; meanwhile will reduce the man-power needs of heavy board feeding.
Control system Adopts the PA control system from German, come with industrial Bus-master control technology, with WIFI function. Entire CNC control system, which can do the circle control about the feeding, working and unloading.
AC servo with absolute encoder Precision:do the circle control of positioning, speed and torque. Speed: high speed performance is good Adaptability: resistance to overload ability is strong, can bear the load of three times of rated torque, with instantaneous load fluctuations and rapid start required. Stability: stable operation at low speed, it is suitable for occasions with requirement for rapid response. timeliness: motor deceleration dynamic response time is short, generally within a few milliseconds.
Chinese ZD planetary reducer
The back clearance is less than 3 arc minutes. The integrated roller bearing is used for precise positioning. The main bearing adopts conical needle roller bearing to achieve high load capacity.
AUTONICS fiber optic sensor
Accurate detection and positioning, detecting board length, prevent plate and drill pack dislocation, reaction time (HSP)100μs (FINE)250μs, a variety of modes to adapt to various detection environment with mutual anti-interference function.
INOVANCE inverter High-end intelligent vector inverter, built - in rich motor control mode Can do about 5,000 PLC functions Flexibility to meet different application requirements
PNEUMAX valve terminal
Imported PNEUMAX valve terminal, operated under vacuum conditions and different operating pressures, the valve terminal can be directly integrated with the most commonly used BUS control systems.
ROUST dust-proof linear guide way
Dust-proof design, lengthened running guide way, processing plate length is unlimited, one time positioning to reduce clamper shifting time.
PUTNAM pneumatic cylinder
Compact structure, effectively save installation space, cylinder inner has been done the rolling treatment and hard oxidation treatment, wear-resisting, durability is good.
Automatic lubrication pump
Good lubrication effect, cylinder type oiling system, all linear guide ways with the individual cylinder oil supply, ensure that all linear guide ways are evenly lubricated.
1. What's your guarantee? Which type after sale service can you provide to us?All the machine, we can offer the 1 year guarantee to our customers; any parts damaged due to the quality issue, we will send the parts via DHL, Fedex or air shipment urgently. After sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer the rapid action to your concerns.2. Which type payment term can you accept? How could we keep our capital safe?We can accept the T/T and L/C at sight. We have more than 10 years exporting experience, so we know more about the capital safty concern of our customer. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side?The leading time of most common machines, will be 10-25 days after collecting the down payment / copy of L/C. Specially designed production will take little bit longer time.4. Can you accept some O.E. M service to us? or any other service could you do for us?We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.

---
