Rotary Fine Pole Permanent Magnetic Chuck

US$260.00
1-9 Pieces
US$355.00
10+ Pieces

Basic Info.

Model NO.
GME-RP01
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
High Precision
Certification
CE, RoHS
Condition
New
Size of Magnetic Chucks
F125X250X78mm
Package of Magnetic Chucks
Carton, Wood Case
Application of Magnetic Chucks
Industrial Application
Pull Force
Clamping Force 100 Kg/Pole.
Transportation
by Sea, by Express, by Air
Certificate
Ce, RoHS, SGS
Lead Time
7-25 Days
Surface Treatment
100% Leak Proof
Advantage
Reduces The Setup Time and Machining of Workpieces
Panel
Mild Steel Q235
Transport Package
Carton, Wood Case
Specification
Customized
Trademark
GME magnetic chucks
Origin
Xiamen
HS Code
8505901000
Production Capacity
100000 Sets

Product Description

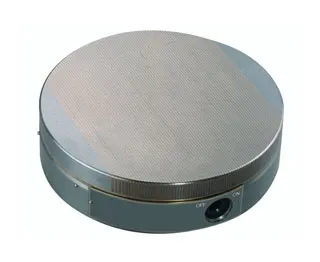

Rotary Fine Pole Permanent Magnetic Chuck
This kind of rotary magnetic chuck plate is suitable for (0°- 90°)angle heavy and light grinding, it can be also used in Liquid.

Specification
HS Code 8505901000
Shape Round Rectangle Chucks Plates
Magnet Pole Type Fine Pole Chucks Plates
Size F125x250x78mm
Application Grinding
Plate Material Q235 Stainless Steel
Magnet Material Type NdFeB Magnet
Pole Alignment Straight
Chuck Style Rotary
Pull Force 100N/cm²
Flatness 0.006-0.007
Remark Includes Removable On-Off Handle


Features

1. Rotary shaft with graduation makes it easy to grind at any angle.
2. Integrated molding of machine body and rotary spindle.
3. When the rotary magnetic chuck is turning magnetic force ON/OFF, the flat face accuracy of the magnetic force surface does not change and can keep a high precision processing surface.
4. The fine-pitch magnetic poles make it ideally suitable for small and big work pieces.
5. Made from a permanent magnet, with a strong magnetic force and little remained magnetism.
6. Specially designed for steady and high precision operation.
7. High-performance magnetic steel in the disc has strong suction and almost diminishes remnant magnet.
