Product Description
Product Description

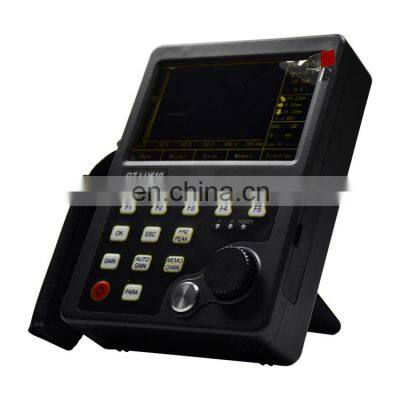

Product Usage and FeaturesU600 Series Digital ultrasonic flaw detector U600 Digital ultrasonic flaw detector and thickness measurement integrated machine integrated ultrasonic flaw detection, ultrasonic thickness measurement, and ultrasonic penetration functions in one. It has various functions such as ultrasonic thickness gauge, WIFI connection network or mobile phone, HDMI, digital filtering, etc., applicable Ultrasonic testing for the surface and internal defects of metal and non-metal materials in the industrial field. The design meets the requirement of ergonomics, and is simple, intuitive, convenient and practical. Provides a very high level of flaw detection with simple basic operations, which makes ultrasonic flaw detectors easy to use for both experienced and novice industry personnel.U600 brings together modern high-tech such as ultrasonic flaw detection, thickness measurement, computer, electronics, mold, technology, etc., to achieve the perfect combination of these high-tech. It provides the industry with more superior performance and more powerful machines, which can be widely used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation, and aerospace.1. Small size and light weight, including the battery weight is only 0.75kg. 2.Built-in domestic and foreign industry standards: The instrument has 11 national standards built-in, compatible with European standards.3.EN12668-1: 2010, which is convenient for setting various DAC and AVG curve parameters.4.Accurate flaw detection High sensitivity.5.High-precision thickness measurement. Coating can be penetrate (U620 /630).6.High-resolution 5.0-inch (800 × 480) widescreen true-color TFT LCD display.7.Recording function and mass data storage.8.HDMI interface Support for teaching use (U630)9.WIFI communication Query flaw detection results anytime and anywhere (U630)10.Low power consumption design Reliable function.Technical ParametersModelGTJ-U610GTJ-U620GTJ-U630Working principleUltrasonicWorking frequency range0.5~20MHzPlus WidthSquare wave width 30 ~1000ns, step0.1nsDetection range0 to 14000(steel longitudinal wave)mmPules displacement-45 to 1000(steel longitudinal wave)mmMaterial sound velocity300~15000m/sDetection methodNegative wave,forward wave,two-way wave,filtering,RFwaveGain adjustment0 to 110dB: 0.1/1/2/6 step adiustmentThickness measurement functionNoNormal mode 0.75-300mm penetrating coating 2-150mmNormal mode 0.75-300mm penetrating coating 2-150mmWIFI/HDMI/Digital FilterNoNoPhone connection/HD pojection/digital filteringValveoff/incoming wave/lost waveDAC, AVG functionDAC curve, AVG curveAttenuator errorEvery 12dB±1dBVertical linear error≤3%Horizontal linear error≤0.5%Dynamic Range≥30dBFlaw deterction margin≥65(2.5Z20N probe)dBOperating Voltage12V(battery, DC)Physical dimension180*130*40mm(height*width*depth)StorageExpansion TF card, mass storageDetailed ImagesUltrasonic Falw DetectorU600 Digital ultrasonic flaw detector and thickness measurement integrated machine integrated ultrasonic flaw detection,ultrasonic thickness measurement, and ultrasonic penetration functions in one.Company IntroductionCangzhou Lovely Technology Co.,Ltd. It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.Packing & DeliveryWelcome to visit us for better business cooperation!After Sales ServiceFAQQ1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
>>
