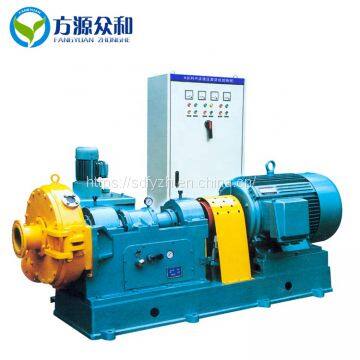

The hydraulic pressure refiner adjusts the pulping pressure through the hydraulic system to meet the pulping requirements of different raw materials. Grinding area clearance of hydraulic pressure adjustment, flexible and convenient operation, constant pressure beating, grinding disc clearance has instantaneous self-adjusting function.
The machine has the advantages of water saving, electricity saving and raise paper physical strength index. The machine also has self-priming function. The beating concentration is 6%-12%, which is suitable for chemical pulp or high yield semi chemical pulp. It can be used not only as a beating equipment after cooking and washing, but also as a seminal pulp for paper machine. It is widely used in waste paper pulp, grass pulp, hardwood pulp, softwood pulp and other kinds of pulp.
Model
| FZYM-500
| FZYM-530
| FZYM -550
| FZYM -600
| FZYM -800
|
Production capacity(T/D)
| 40-80
| 60-150
| 80-180
| 100-250
| 200-350
|
Diameter of grinding disc
| φ500
| φ530
| φ550
| φ600
| φ800
|
Speed of grinding disc
| 1480rpm
|
Cocentration of grinding disc
| 6-15%
|
Adjustment range of grinding disc route
| 0-20mm
|
Model of grinding disc
| A C D E
|
Route of hydraulic pressure
| 0-40mm
|
Ajustment range of pressure
| 0-2.5Mpa
|
Flow of oil pump
| 10L/min
|
Form of slurrry
| feed by self-suction
|
Intlet&Outflow
| DN150×DN150
| DN200×DN200
| DN250
|
Equipped power
| 110-132KW
| 132-160KW
| 185-200KW
| 220-280KW
| 315KW
|
Gravity of main machine
| 3-3.5T
| 3.5-4T
| 3.5-4.5T
| 4-5T
| 5-8T
|
Our Services
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Company Information
Fangyuan Zhonghe Machinery Co., Ltd. (formerly Zhucheng Fangyuan Machinery Co., Ltd.) is the backbone enterprise specializing in the production of environmental-friendly pulp and papermaking equipment, tissue paper machine and sewage treatment equipment. The company is next to Qingdao free trade zone Zhucheng functional area. The main products include two categories, more than 50 series, sewage treatment equipment, pulp and papermaking equipment and crescent tissue paper machine. With the high technology content, it has reached the advanced level of the same industry in China.
FAQ
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for more than 20 years of experience
Q2. How to install the equipment?
A: We can give you guide by video, voice, email af all kinds chatting APP
If there's still doubt, we can arrange the professinal engineer to install in your country
Q3. How do you pack the products?
A: Normally as the export standard or as your needs
Q4. What is your available port of shipment?
A: Qingdao port, etc.
Q5. Do you offer guarantee for the products?
A: Yes, under the right condition, we can offer time warranty for our products
>>
